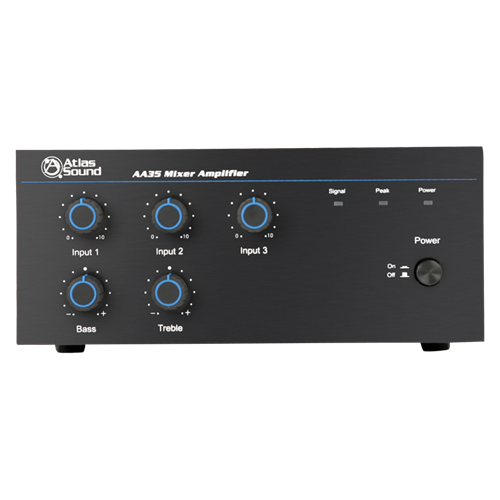

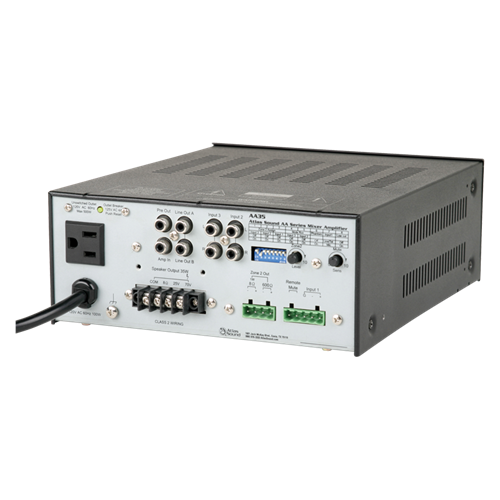

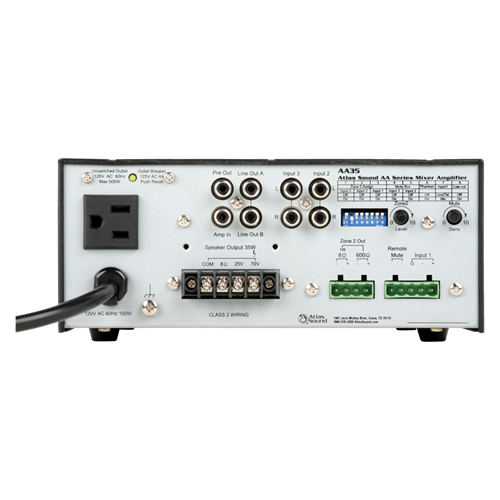

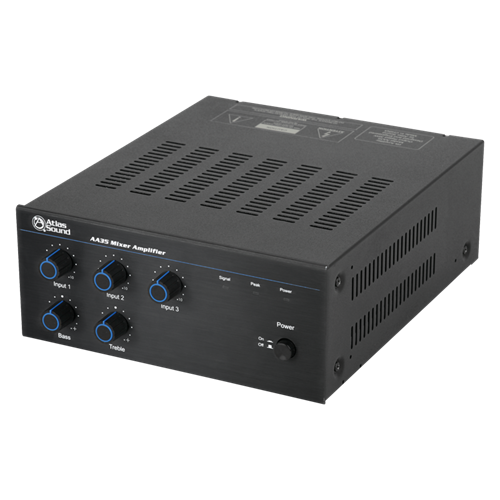

AA35
35 Watt Three Input Mixer Amplifier
The Atlas Sound AA35, a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required.
Tech Data
Specifications
1 Mic in w/phantom power
2 Stereo line inputs
35 Watts of true output power
Dual line outputs
Pre Out/ Power in patch
Remote and VOX activated Mute
Route any source combination or entire mix bus to Zone 2 (MOH Out)
Special Low Cut filter is 6dBu / octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
Height
3 11/
16" (9.2964 cm)
Width
8 1/4" (21.0058 cm)
Depth
10 7/8" (27.6098 cm)
Shipping Weight
10.20 lbs (4.63 kgs)
Frequency Response
50Hz-20kHz ±3dB
Connector Type
Phoenix and RCA
Output Power
35 Watts
Rack Spaces
2 high 1/2 wide
UL Listed/Standard
60065-ROHS 2006 Compliant
Manual
CAD File
2011 Atlas Amp Brochure
Data Sheet
