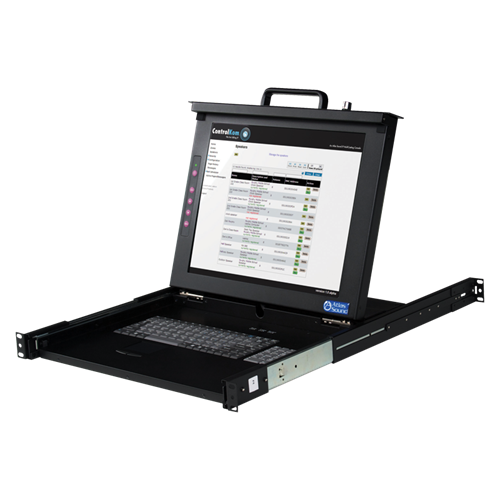

MMK17-RM
17" LCD Single Rail Console
The Atlas Sound MMK17-RM is a convenience solution that is designed to make network system monitoring easy. This keyboard/screen combination unit is only 1RU high and fits into most standard 19" rack designs and can connect to any PC via a standard VGA connection. This design is critical for technicians or network administrators to have easy access to their system computer without having to have available space for an external monitor, keyboard and mouse. The design of the MMK17-RM allows the monitor, keyboard and mouse to be stowed safely within the rack when not in use and it can be easily accessed when needed. Racks and cabinets can remain locked until access is needed by an authorized staff member ensuring system security.
This single rail console with optional modular KVM switch offers industrial level input solution to optimize your space utilization by controlling your systems in just 1RU. With its unique modular design, the (MMK-KVM8) 8 port KVM can be easily integrated. Expanding the ability of this 1RU Keyboard, Monitor, Mouse to control up to 8 computers.
Tech Data
Specifications
Easy to Install, Single Rail Design
Supports SunT Native Resolution
Supports 17 Various Keyboard Languages (Increasing)
Bright Active TFT Display
OSD Function for LCD Display and KVM Switch
Durable Keyboard (Touchpad)
Panel Protected by Tempered Glass
Integration with KVM Switches
Display Size
17" (431.8mm)
Panel Type
Active Matrix TFT LCD
Maximum Resolution
1280 x 1024 (SXGA)
R / L Viewing Angle
60°
U / D Viewing Angle
45° (Typ)
Contrast Ratio
450:1
Brightness
White 250 cd/m²
Response Time
Rising 2ms, Decay 14ms
Power Consumption
25W, 19.05W for Panel
Keyboard / Mouse
106 Key PS/2 Keyboard with Touch Pad
System Cables
VGA+PS/2 (x2), VGA+USB (x1)
Power Source
100VAC~240VAC Input
Operating System
DOS, Microsoft WindowsT (3.1, 9x, 2000, NT4, ME, XP, 2003 Server), Linux, Novell 3.12-6, HP, UX, Sun
Height
1.7" (44mm)
Width
18.5" (470.1mm)
Depth
17.6" (447.5mm)
Certification
CE/FCC, UL/CUL/C-Tick, GOST
