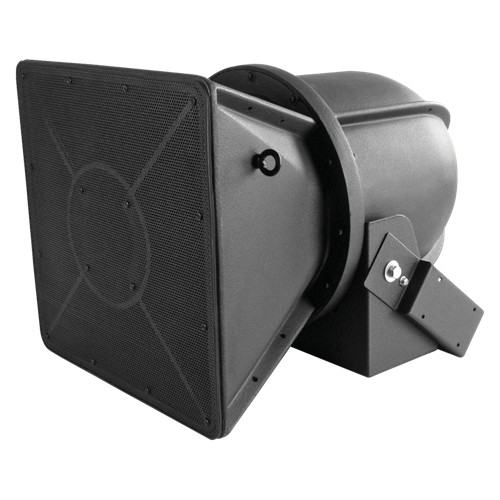

AH5040S 15" 2-way Stadium Horn System 50x40
Atlas Sound model AH5040S "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

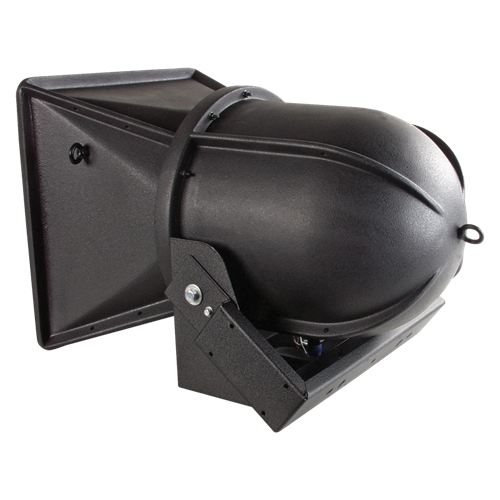

Weather resistant construction features of the AH5040S include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
Tech Data Specifications
  • (3) Forged eyebolts also included for suspended installation
  • 250 Watts power handling
  • 8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
  • Constant Directivity design offers controlled coverage of 50° horizontal by 40° vertical (2kHz octave band)
  • Driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 50°H x 40°V HF horn
  • Easy, weather resistant connection via a parallel 4-pole terminal block connector
  • Efficiency rating of 104dB (1 Watt/1 Meter)
  • Heavy duty stainless steel mounting bracket (included) allows for easy installation to most any flat surface
  • Maximum output of 128dB (Rated Power @ 1M)
