12CXT60

12CXT60 Coax Compression Driver 12" 2-Way 70.7V

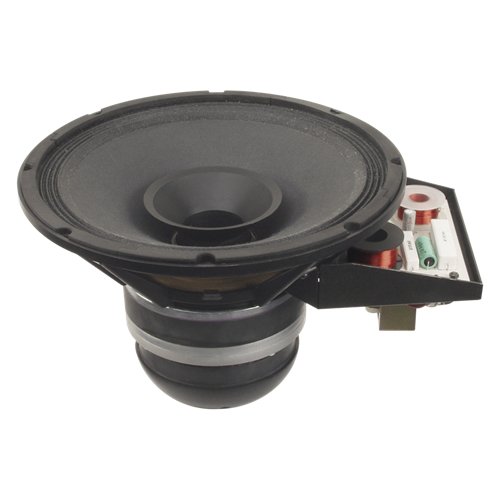

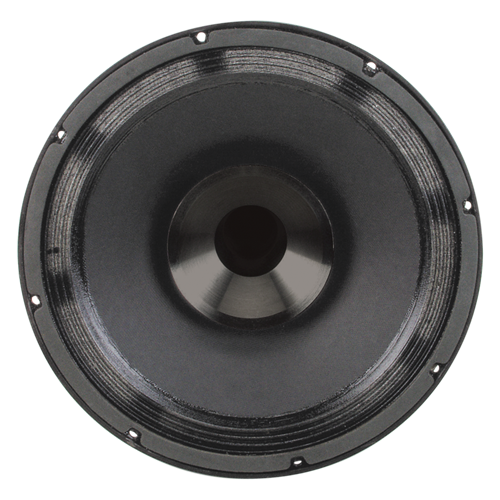

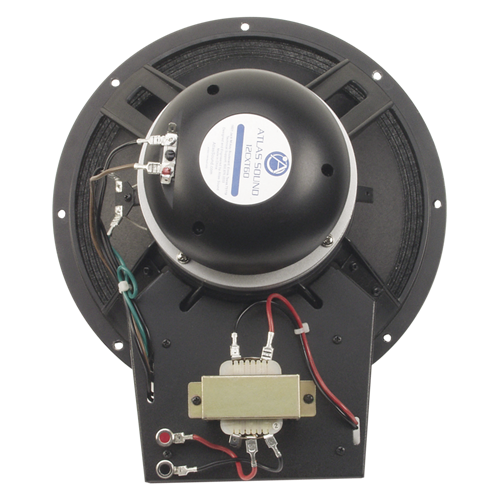

Model 12CXT60 is a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer.

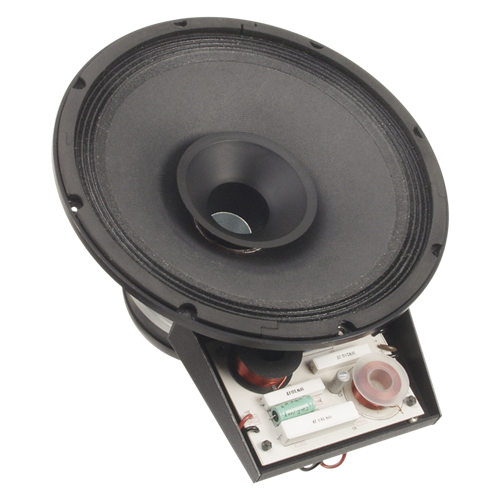

The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers.

Model 12CXT60 operates within a frequency response range of 45 Hz -18 kHz (±10dB) with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band).

Tech Data Specifications

1" Exit compression driver coupled to a specially designed conical wave-guide horn
90 Degree conical dispersion (2 kHz octave band)
High efficiency cone woofer optimally matched to high frequency device via a specially designed crossover to insure even transition
Perfectly suited for use with Atlas Sound "Q" Series enclosures


Depth	8" (20.32 cm)
Diameter	12 7/8" (32.7025 cm)
Shipping Weight	26.00 lbs (11.79 kgs)
Frequency Response	33 Hz to 21 kHz (±2dB)
Power Taps	7.5, 15, 30, 60
Speaker Type	Compression Driver Coaxial
Dispersion	90°
Sensitivity	99dB (at 1W / 1M)
