170-8A

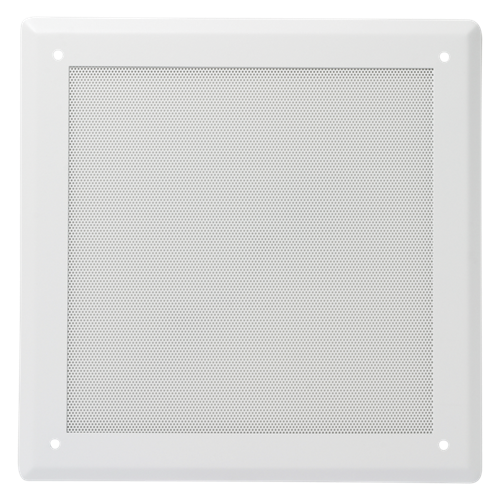

Perforated Baffle 8"
Model 170-8A. Popular ceiling baffle features a die-formed frame with shal-low bevel and perforated screen. Separate loudspeaker mounting subplate (20-ga. CRS) provides extended "no leak" bass response. The design offers screw-mount installation with concealed loudspeaker mounting studs and accommodates standard 8" (203 mm) dia. loudspeakers. Unit is of two-piece CRS construction (18-ga. trim, 22-ga. perforated grille) with textured white epoxy finish.
Tech Data
Specifications
Attractive Models Feature Concealed Loudspeaker Mounting Studs
Heavy-Gauge CRS Construction Guards Against Vibration and Rattle
Suitable for Multi-Purpose Ceiling and Wall-Mount Applications
Height
13 1/2" (34.29 cm)
Width
13 1/2" (34.29 cm)
Depth
1/4" (0.635 cm)
Shipping Weight
3.50 lbs (1.59 kgs)
Speaker Size
8
UL Listed/Standard
1480, 2043
