198-8

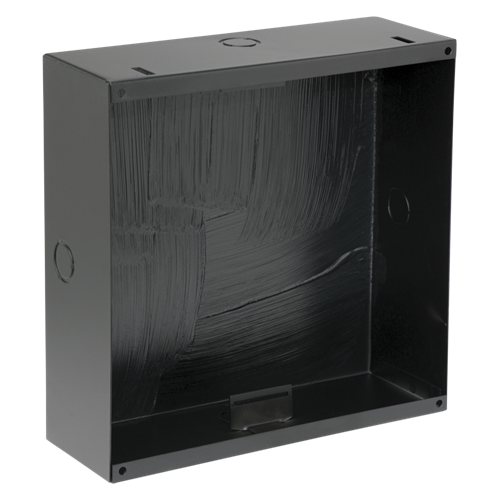

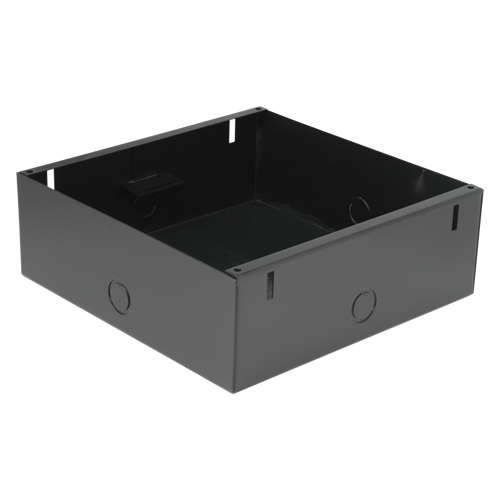

Rectangular Enclosure for 8" Louadspeakers
This cost effective square protective enclosure furnished with four compound conduit knockouts is a cost-effective assembly that mounts a wide variety of Atlas Sound grilles.
Unit features welded CRS construction, black enamel finish and undercoating to eliminate mechanical and acoustical resonances.
Tech Data
Specifications
Designed for 8" (203mm) dia. Loudspeakers and will accommodate standard screw-mount baffles.
Enclosure for 8" diameter standard and UL listed loudspeakers
Finish is black enamel
Height
100 11/16" (27.14625 cm)
Width
100 11/16" (27.14625 cm)
Depth
3 3/4" (9.525 cm)
Shipping Weight
3.17 lbs (1.44 kgs)
UL Listed/Standard
1480
Data Sheet
CAD Drawing
