407-15

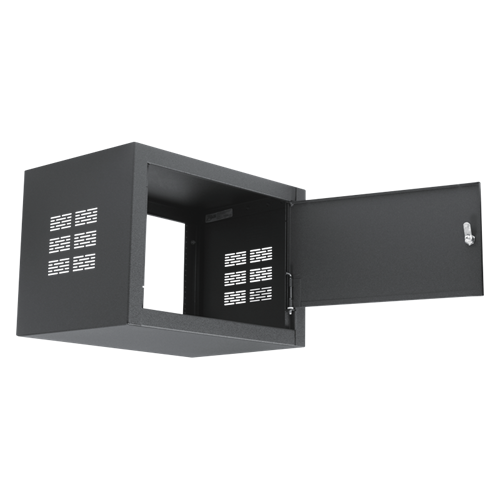

Welded & Assembled Desk Top Cabinet - 7 RU
This assembly provide desk-top access to (19") control and monitor equipment.
This model is 16-gauge CRS and include one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.
The 407-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD407) with self-tapping screws.
Inside (usable) dimensions are 17-3/4" W x 14-1/8" D.
Tech Data
Specifications
11-Ga. CRS Tapped Mounting. Rails
16-Ga. CRS Cabinet
5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
5/8" Offset Rails for Panel Mount
Completely Assembled and All-Welded Construction
Internal Louvers on Each Side
Keyed Cylinder Lock on Rear Door
Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
Spring-Loaded Hinge for Easy Removal of Rear Door
Height
15 1/2" (39.37 cm)
Width
220 5/16" (56.67502 cm)
Depth
15 3/8" (39.0525 cm)
Shipping Weight
36.00 lbs (16.33 kgs)
Rack Spaces
7
Data Sheet
CAD File
Rack Selection Guide
