410-15

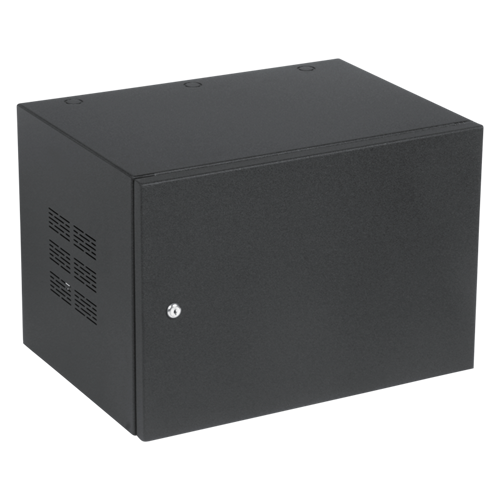

410-15 Welded & Assembled Desk Top Cabinet - 10 RU
This welded assembly provides desk-top access to (19") control and monitor equipment. Model 400-17-962 is 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel. Model includes locking rear door with spring-loaded hinge, side vents and optional front door with self-tapping screws. Inside (usable) dimensions are 173/4" W x 141/8" D.

Tech Data Specifications

11-Ga. CRS Tapped Mounting. Rails
16-Ga. CRS Cabinet
5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
5/8" Offset Rails for Panel Mount
Completely Assembled and All-Welded Construction
Internal Louvers on Each Side
Keyed Cylinder Lock on Rear Door
Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
Spring-Loaded Hinge for Easy Removal of Rear Door


Height	20 3/4" (52.705 cm)
Width	220 5/16" (56.67502 cm)
Depth	15 3/8" (39.0525 cm)
Shipping Weight	43.00 lbs (19.50 kgs)
Rack Spaces	10
