435-6

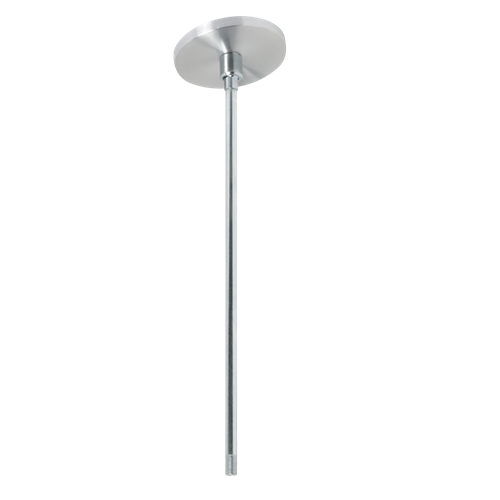

6 Ft Hanger for 8" Cylindrical Baffle
435-6 is designed to support and suspend baffle Models X44, X8414 and X8409. Hangers are available in multiples of 1 foot and include brushed aluminum canopy, nickel-plat-ed hang straight swivel, zinc plated 1 /2 " (13mm) steel tubing and necessary hardware. Units mount directly to a 4" (102mm) octagon E.O. box (not included). The 435 Series features an angular canopy and is designed to mount on flat ceilings or those with a slope of 15° or less.
Tech Data
Specifications
Brushed aluminum canopy, nickel-plated hang straight swivel, zinc plated 1/2" (13mm) steel tubing and necessary hardware
Designed to support and suspend baffle Models X44, X8414 and X8409
Mounts directly to a 4" (102mm) octagon E.O. box
Height
72" (182.88 cm)
Shipping Weight
1.00 lb (0.45 kgs)
Installation Sheet
Data Sheet
CAD Drawing
Baffle/Enclosure Mounting Guide
