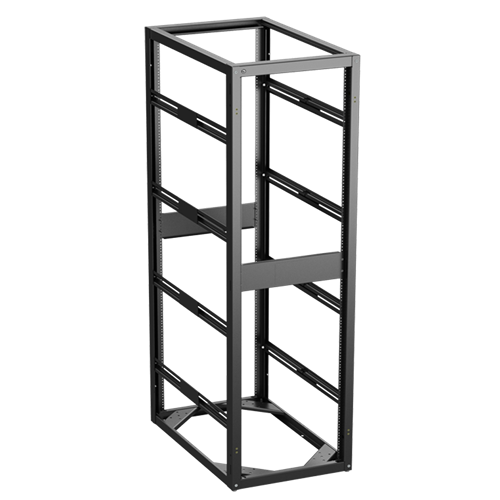

744-36 700 Series 19" Wide Opening Stand-Alone/Gangable Deep Floor Cabinet with Adjustable Rails, UL Listed 44RU
For single and multiple bay configuration installs requiring additional weight capacity and extended depths, Atlas Sound offers the 14 ga. frame construction of the 744-36. The 744-36 is 22 1/2" wide, 36" deep, and has 44 vertical panel spaces.


Multi-formed and welded frame members provide superior strength and load bearing capability. Base is constructed of double-formed front and rear sections, MIG welded and reinforced with 11 ga. CRS corner caster gussets. Vertical columns interlock with frame top and base adding double material thickness for superior load bearing capability. Mounting rail channel support members are multi-formed and MIG welded for superior interlocking support. Panel mounting rails are fully adjustable front to rear.


Base includes four 3/8"–16 threaded sockets to accept leg levelers (Models LL-1) and four 11 ga. CRS corner gussets that are punched to accept casters. Base also has provisions to be permanently secured to the floor.


Shipped with 2 pair of 11 ga. CRS adjustable mounting rails. Rack rails are precision tapped 10–32 and recessed 1 3/16" (30mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.


Hatsections are on 19" panel spacing to accommodate vertical accessory mounting.


This cabinet sports a solid secure professional look without punched vents. Therefore, thermal air-flow design may be precisely designed and maintained without the fear of contaminants or other foreign/damaging objects entering through vents.

With the addition of optional Seismic Bracket, SBK-700, 700 Series Racks can be certified in accordance to the Telcordia NEBS (Network Equipment Building Systems) GR-63-CORE standard. When the SBK-7-- brackets are properly installed, the 700 Series successfully endured the rigorous real-world dynamic test - the racks are able to withstand up to a zone 4 earthquake which is comparable to Richter magnitude 8.0!
