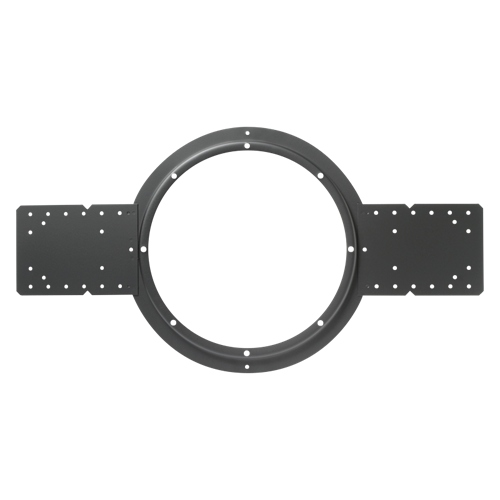

76-8E2
8" Mounting Ring 24" Studs
Use Model 76-8(E2) for installing screw mount baffles for 8" loudspeakers as well as 95 series enclosures for new construction drywall applications. .
Unit includes mounting ears to facilitate 16" or 24" OC stud mounting.
Unit is constructed of 20 ga. CRS finished in textured epoxy, and includes four 8-32 J-Nuts.
Tech Data
Specifications
Suited for a Variety of Ceiling Constructions Including Drywall, Plaster, Conventional, Stud Ceiling, and Retrofit Applications
Works with 8" screw baffles and 95 series enclosures (if "T"-nuts are removed.
Depth
7/16" (1.11252 cm)
Diameter
11 7/8" (30.1625 cm)
Shipping Weight
1.30 lbs (0.59 kgs)
Mounts Baffle
51-8, 60-8(W), 61-8W, 62-8(W), 63-8, 170-8, VP-60R, M222(W), P900
Data Sheet
Baffle/Enclosure Mounting Guide
CAD File
