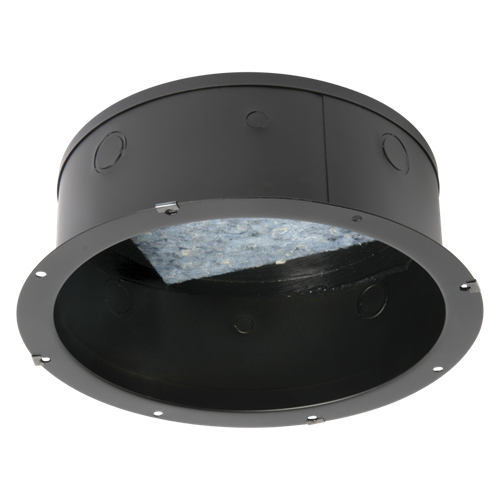

95-8
8" Recessed Round Enclosure
Model 95-8 is furnished with: four compound combination knockouts (1/2"–3/4", 13–19mm) spaced 90° apart. One flexible perforated strap is provided on the top of the enclosure for secondary "safety" suspension when required.
Four 8–32 J-Clips are included for installing screw-mount baffles.
Model 95-8 is suited for use with 8" loudspeakers.
Tech Data
Specifications
Accommodates 8" loudspeakers
Industry's most popular enclosure to fulfill a wide variety of installation and application requirements
Welded CRS construction with a painted finish, undercoating, and patch-jute lining to eliminate mechanical and acoustical resonances
Depth
4 1/4" (10.795 cm)
Diameter
11 3/4" (29.845 cm)
Shipping Weight
2.83 lbs (1.29 kgs)
Mounts Baffle
51-8, 60-8(W), 61-8W, 62-8, 63-8,170-8A, G22-8, M222W, P900, VP60-R
UL Listed/Standard
1480, 2043
Data Sheet
CAD Drawing
Baffle/Enclosure Mounting Guide
