96-8-7

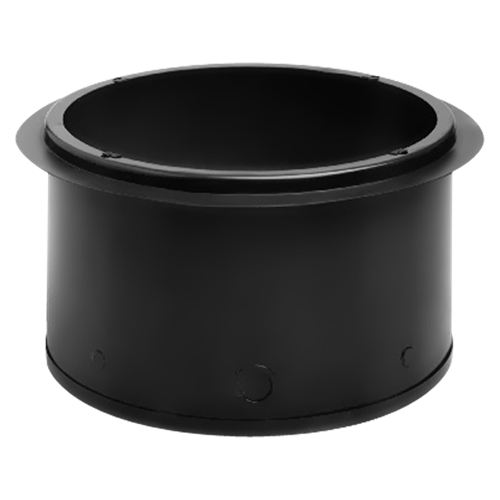

8" Flanged Round Enclosure 7" Deep W/Fiberglass
Atlas Sound 96-8-7 is a cost-efficient cylindrical protective enclosure that mounts a variety of Atlas Sound grilles.
Unit features welded CRS construction with a painted finish.
Undercoated and patch-jute lined to eliminate mechanical and acoustical resonances.
Tech Data
Specifications
Generous Acoustic Fiberglass Lining Improves Low Frequency Response to Achieve Fuller, Richer Bass
Loudspeaker Enclosures with Greater Cubic Capacity Provide Improved Loading to Enhance High-Quality Sound Systems
Mounting holes located on the internal plaster flange to allow easy and convenient installation
Round, Recessed, Model To Meet Professional Sound Installation Requirements
Depth
7" (17.78 cm)
Diameter
11 7/8" (30.1625 cm)
Shipping Weight
4.67 lbs (2.12 kgs)
Mounts Baffle
51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, UM222W
UL Listed/Standard
1480
Data Sheet
CAD Drawing
Baffle/Enclosure Mounting Guide
