AA120

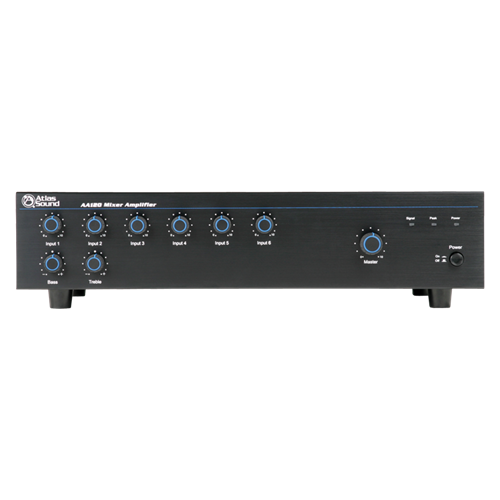

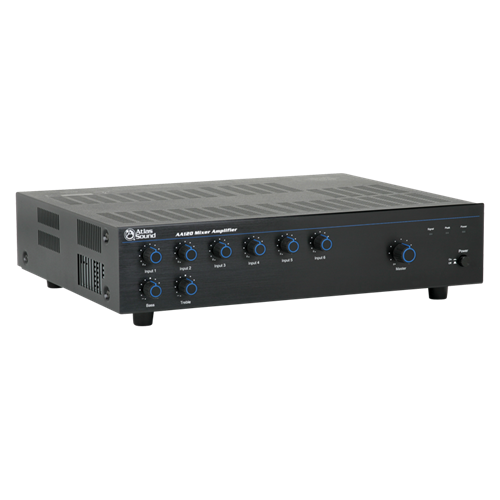

AA120 120 Watt Six Input Mixer Amplifier

Atlas Sound AA120 amplifier is a powerful
120 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment.

This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays.

VCA control port may be assigned to the BGM input or globally for the entire amplifier. Optional VCA control AAVC-10K.

Tech Data Specifications

120 Watt 6 channel mixer amplifier
5 Mic/Line inputs with phantom power and 1 stereo summing AUX input
Bridge in/out circuit with balanced link / internal relay to engage circuit is perfect for small room combining systems eliminating the need for external electronics
Pre out / power amp in for patching external processors
Remote or VOX mute capabilities
Special Low Cut filter is 6dBu/octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
Zone 2 MOH out from CH6 line source
UL60065 Listed


Height	4 1/4" (10.71626 cm)
Width	16 9/16" (42.0116 cm)
Depth	14 1/16" (35.7124 cm)
Shipping Weight	26.44 lbs (11.99 kgs)
Frequency Response	50Hz-20kHz ±3dB
Connector Type	Phoenix and RCA
Output Power	120 Watts
Rack Spaces	2
UL Listed/Standard	60065-ROHS 2006 Compliant
