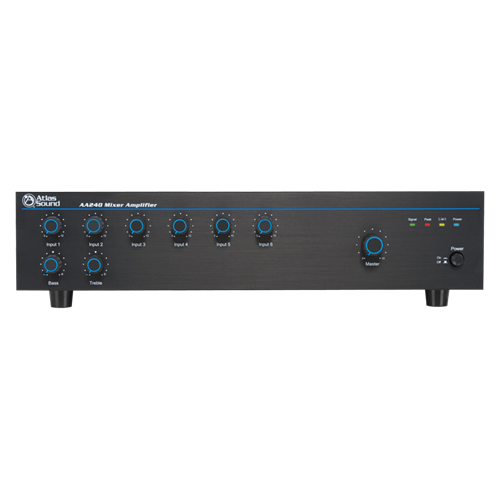

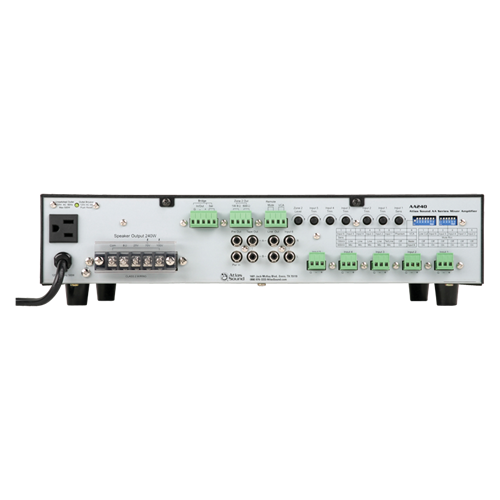

AA240
240 Watt Six Input Mixer Amplifier
Atlas Sound AA240 amplifier is a powerful 240 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA control is included which may be assigned to the BGM input or globally for the entire amplifier
Tech Data
Specifications
240 Watt 6 channel mixer amplifier
5 Mic/Line inputs with phantom power and 1 stereo summing AUX input
Bridge in/out circuit with balanced link / internal relay to engage circuit is perfect for small room combining systems eliminating the need for external electronics
Pre out / power amp in for patching external processors
Remote or VOX mute capabilities
Special Low Cut filter is 6dBu/octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
VCA control assignable to input 6 line level (BGM) input or global for the mix bus
Zone 2 MOH out from CH6 line source
Height
4 1/4" (10.71626 cm)
Width
16 9/16" (42.0116 cm)
Depth
14 1/16" (35.7124 cm)
Shipping Weight
26.44 lbs (11.99 kgs)
Frequency Response
50Hz-20kHz ±3dB
Connector Type
Phoenix and RCA
Output Power
240 Watts
Rack Spaces
2
UL Listed/Standard
60065-ROHS 2006 Compliant
CAD File
AA240 Manual
2011 Atlas Amp Brochure
Data Sheet
