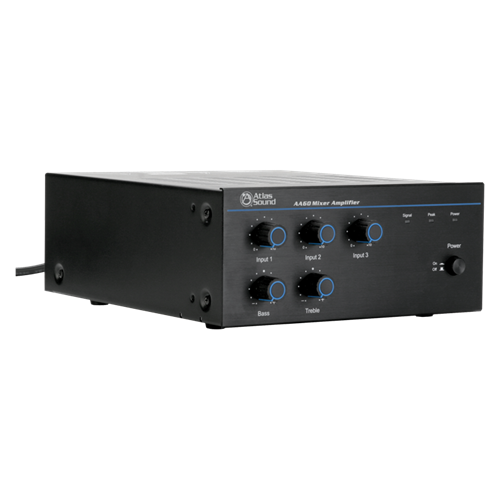

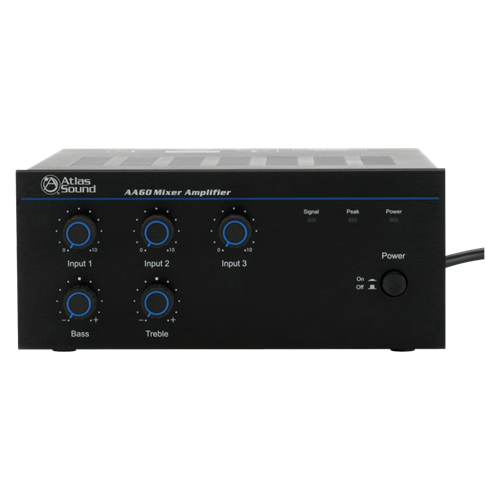

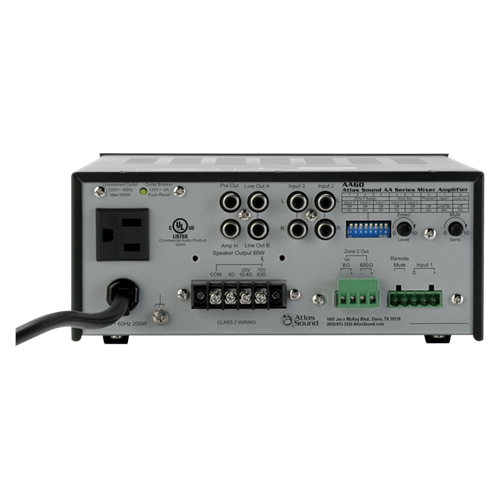

AA60
60 Watt Three Input Mixer Amplifier
The Atlas Sound AA60, a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems and in applications where music on hold (MOH) plus paging is required.
Tech Data
Specifications
1 Mic in w/phantom power
2 Stereo line inputs
Dual line outputs
Pre Out/ Power in patch
Remote and VOX activated Mute
Route any source combination or entire mix bus to Zone 2 (MOH Out)
Special Low Cut filter is 6dBu / octave at 400Hz and also bypasses front panel bass control to allow use with paging horns like APX40TN and AP-15T
60 Watts of True Output Power
Height
3.66" (94mm)
Width
8.27" (210mm)
Depth
10.87" (276mm)
Frequency Response
50Hz - 20kHz
Connector Type
Phoenix and RCA
Output Power
60 Watts
UL Listed / Standard
UL60065
