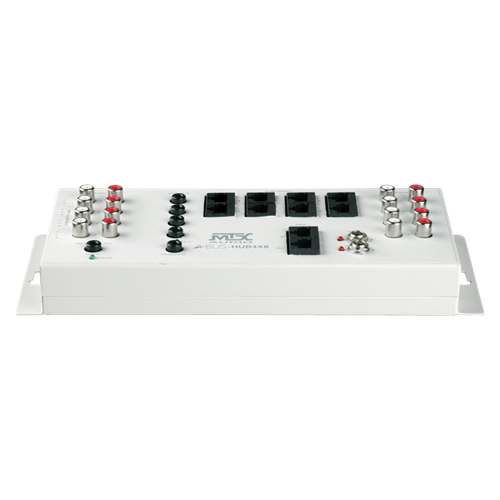

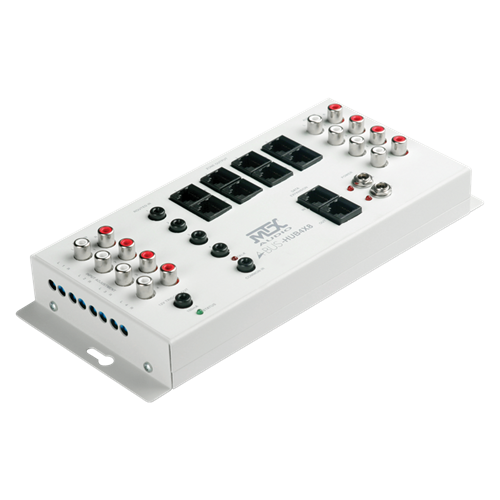

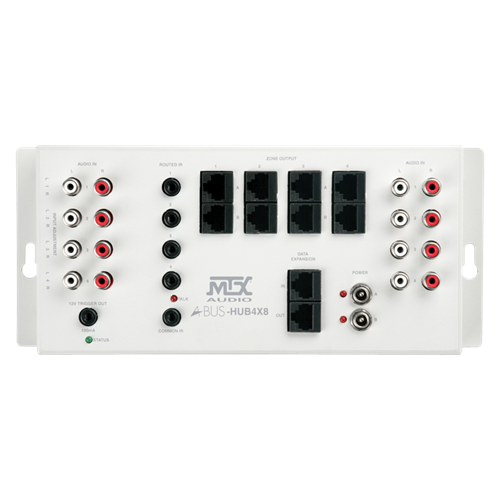

ABUS-HUB4X8 A 4 Input / 4 Zone (8 Output) Hub For The A-Bus system
ABUS is a revolutionary new technology created to simply and affordably distribute music in commercial and home applications. ABUS works with inexpensive 8-conductor (CAT 5) wire to distribute audio, infrared, status and system power to the ABUS in-wall controller/amplifier.

The HUB4x8 is the core of the ABUS system. There are four stereo line-level source inputs. Each input has individual level adjustments (left and right). Each source input has its routed emitter port, if more that one component of the same type is used the remote control commands will not be confused. Eg. 2 tuners. There is also a common emitter port to control components that are common to all zones.

Each of the ABUS Outputs provides the power, audio and data signals to feed a Volume Control Module. There are four output zones, each zone may independently select from any of the four sources. Each zone has two outputs bank "A" and bank "B". One power supply is supplied with the hub to power the outputs for one bank. A second power supply can be added to power the second bank or alternatively the second output can be used as an expansion port to feed one or more single source hubs with expansion capability.
Tech Data Specifications
  • 1 12-Volt Trigger Output
  • 4 IR Emitter Ports And 1 Common IR Emitter Port
  • 4 Left And Right Gain Controls
  • 4 Stereo Line Level Inputs With 4 Stereo Line Level Outputs
  • 4 Zones With 8 Outputs
  • In/Out Expansion Ports for Additional Zones
  • Includes 1 ABUS ABO-41RC Remote Control
  • Includes 1 Power Supply
  • No Special Programming Needed
  • Utilizes Structured Wiring So Only 1 CAT-5 Cable Run Is Needed For Each Zone.
