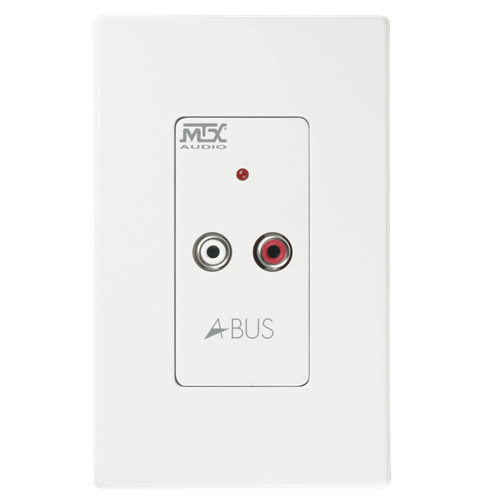

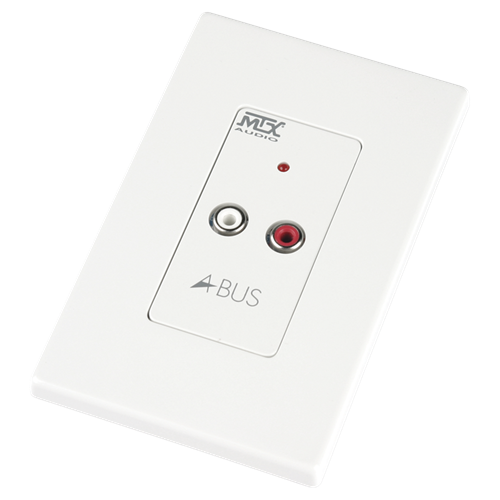

ABUS-LS1RJ
Local Source Input Module for A-Bus System w/ RJ-45 (RJ-45 Connection)
ABUS is a revolutionary new technology created to simply and affordably distribute music in commercial and home applications. ABUS works with inexpensive 8-conductor (CAT 5) wire to distribute audio, infrared, status and system power to the ABUS in-wall controller/amplifier.
The ABUS-LS1RJ provides "local" input capability for sources such as TV sound, MP3 player, computer sound cards, etc. located in the zone. The ABUS-LS1RJ automatically switches to the local input when a local source is detected. 30-seconds after the local source ceases, the ABUS-LS1RJ automatically reverts to the main input source.
Tech Data
Specifications
1 Stereo Line Level Input With RCA Connections
Local Signal Sensing Trigger
No Special Programming Needed
Utilizes Structured Wiring So Only 1 CAT-5 Cable Run Is Needed For Each Zone.
Height
4 1/4" (10.668 cm)
Width
10 11/16" (4.318 cm)
Depth
1 3/4" (4.572 cm)
Connector Type
RCA (Local Audio)
CAT5 RJ-45 (From Hub)
