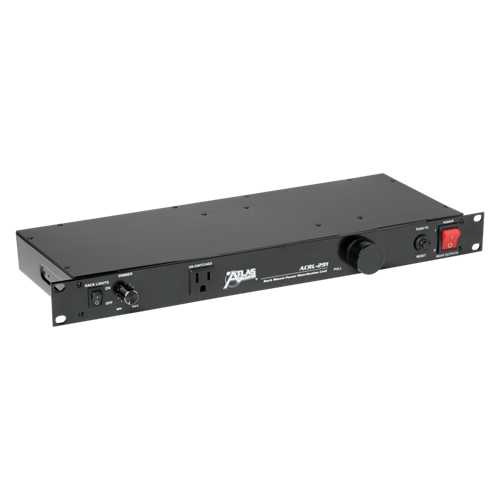

ACRL-291 Rack Mount Power & Light Module 8 Switched Outlets, Front & Rear Pull Out Lights
Model ACRL-291 slimline AC power panel requires only 1 RU (1¾") of vertical panel space and features a front mounted DPST-type rocker switch for switching both sides of the power line, a red neon status indicator lamp, a 15-amp resettable circuit breaker on the front panel, and eight switched grounded outlets on the back chassis along with one unswitched front panel outlet. Dimmable pull-out lights are provided on the front and rear of the unit to provide illumination during and after installation of rack mount equipment.


A 9' (3m) factory installed powercord is included with the unit. However, a unique removable rear wiring panel with E.O. connector/strain relief provides for easy connection to internal pigtail power leads.


Panel is 16-gauge CRS and formed on two sides for recessed mounting. Standard finish is textured black epoxy.
