AH6565S

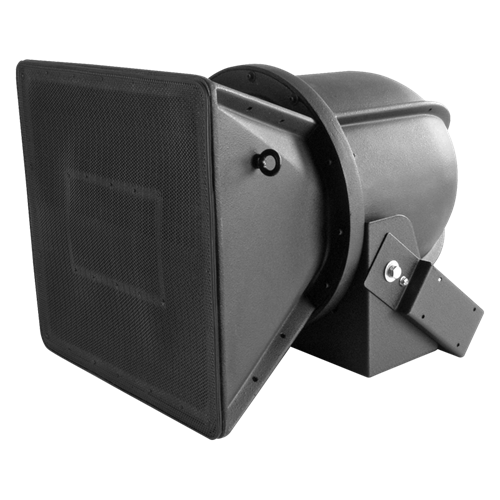

15" 2-way Stadium Horn System 65x65
Atlas Sound model AH6565S "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.
Weather resistant construction features of the AH6565S include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer.
A "weep" hole is included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
Tech Data
Specifications
(3) Forged eyebolts also included for suspended installation
250 Watts power handling
8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
Constant Directivity design offers controlled coverage of 65° horizontal by 65° vertical (2kHz octave band)
Driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn
Easy, weather resistant connection via a parallel 4-pole terminal block connector
Efficiency rating of 104dB (1 Watt/1 Meter)
Full range frequency response of 80 Hz to 15 kHz (± 5dB)
Heavy duty stainless steel mounting bracket (included) allows for easy installation to most any flat surface
Maximum output of 128dB (Rated Power @ 1M)
Height
20 1/2" (52.07 cm)
Width
20 1/2" (52.07 cm)
Depth
32" (81.28 cm)
Weight
87.00 lbs (39.5 kgs)
Frequency Response
75Hz - 14.5 kHz (±5dB)
Driver Type
LF: (1) 15
Dispersion
65° x 65°
Power Rating
250 Watts (53V) RMS
Sensitivity
104dB SPL (70Hz to 17kHz 1/3 octave bands)
Data Sheet
Polestar UniFrame Install and Parts Guide
Brochure
CAD Drawing
15" Horn Single Pole Mount Assembly
15" Horn Double Pole Mount Assembly
