AL2430-2PH New Classroom Security & Sound Reinforcement System
The Atlas Learn AL2430 system is an in-classroom sound reinforcement solution designed for use in K-12 and higher education facilities or where a room constrained public address system is required. This complete audio enrichment package consists of amplifier / receiver, wireless microphones, and docking station designed to allow the teacher and students to walk freely around the room with the infrared microphones/system control units and project their voices through installed speakers.


Classrooms equipped with sound reinforcement benefit teachers, students, and the education system as a whole. With even sound distribution, lessons are easily heard no matter where students are seated. Attention and concentration are raised, especially in the back of the room, through this added involvement. Teachers no longer strain their voice and they can easily integrate with multimedia teaching tools such as computers and DVD players by controlling audio from a single source. And with priority paging and emergency notification to inform another location of the need for outside assistance, Atlas Learn fulfills the needs of any education facility.

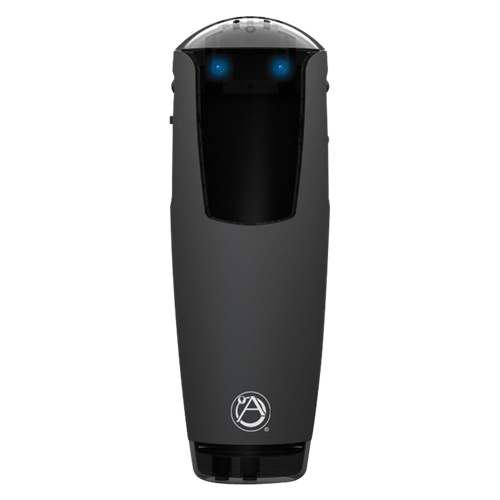

AL2430 Pendant IR Transmitter

The versatile and ergonomic AL2430 pendant / handheld microphone transmitter allows both teachers and students freedom of movement without bulky electronics or cumbersome wires. The dual mode transmitter allows teachers to control microphone volume, overall system volume and mute settings via side mounted soft touch controls.
In addition, when "PANIC" and "MODE" controls are pressed simultaneously for a contact closure is triggered on the AL2430 receiver. This contact closure may be integrated with most any intercom or IP based notification system to signal an emergency condition in the classroom. When transmitter is configured for "student" mode operation, all controls are bypassed restricting the device’s functionality for use as a wireless microphone only.

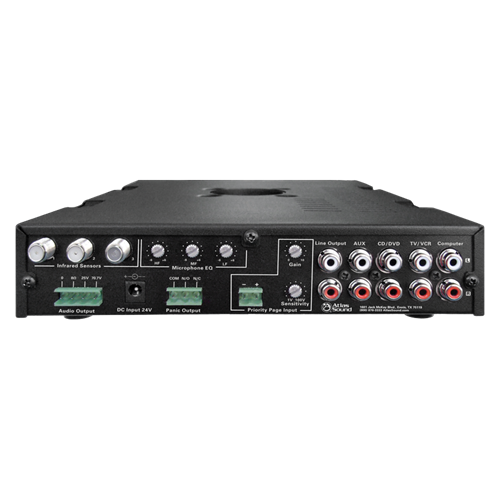

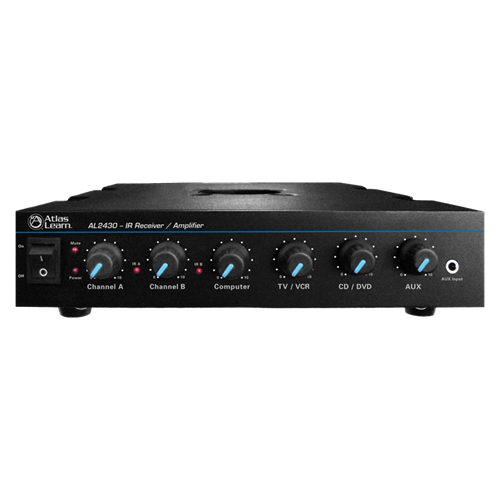

AL2430 Integrated Receiver / Amplifier

The compact, ergonomically designed AL2430 receiver/amplifier provides intuitive control of all system components. With inputs included to accommodate most any multimedia source, dedicated AV systems are no longer needed saving valuable space in the classroom.

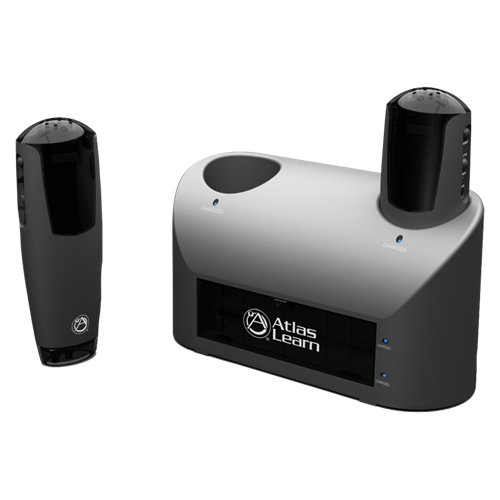

Microphone Charging Station

AL2430 charging station includes a dock section to charge two pendant transmitters and four AA rechargeable batteries simultaneously. Unit may be wall mounted via integral key hole slots or shelf mounted for easy accessibility.



Infrared Dome Sensors

Up to three infrared dome sensors may be utilized with the AL2430 receiver / amplifier (two are included with the system) along with two 10 meter sections of UL listed coaxial cable terminated with professional "F" connectors.



Available System Configurations

AL2430-2PH
Includes: two Pendant / Handheld Transmitters, Charging Station, Receiver/Amplifier, two IR Receiver Domes with Cables, Rechargeable Batteries, and Power Supplies.

AL2430-2PH-SD4
Includes: two Pendant / Handheld Transmitters, Charging Station, Receiver/Amplifier, two IR Receiver Domes with Cables, Rechargeable Batteries, Power Supplies, four Atlas Sound SD72W Loudspeakers, four 81-8 Tile Bridges, four CS95-8 Enclosures and 100’ of plenum rated 18/2 speaker cable. Loudspeaker system is UL Listed for use in air handling (plenum) spaces per UL2043 standard.
Tech Data Specifications
  • Works in Conjunction with Secondary Systems to Provide Enhanced Classroom Security
  • Provides Excellent Infrared Wireless Sound Reinforcement
  • Easily Integrates Into Any Classroom
  • Keeps Teachers' Voice Healthy and Sustainable
  • For more information or to arrange a demo please call: 877-626-9005 or email: AtlasLearn@AtlasSound.com
