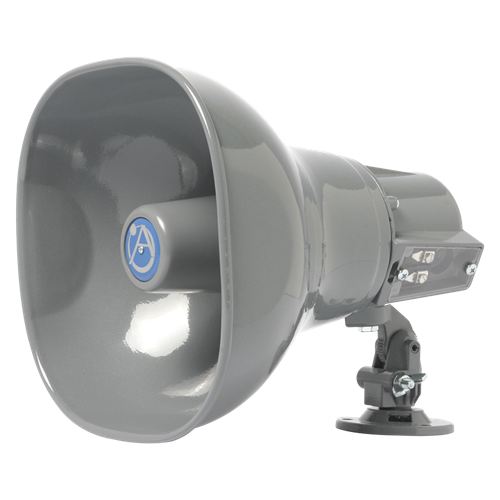

AP-15
Omni-Purpose Loudspeaker 15W 8 Ohms
The 8-ohm Model AP-15 is a double re-entrant loudspeakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
Tech Data
Specifications
Environment Resistant for Outdoor and Indoor Use
Grey Finish
High-Efficiency Driver with Proven Performance Reliability
Omni-Purpose® Bracket for Precise Positioning
Superior Intelligibility for Voice and Tone Signaling
World Recognized for Quality and Dependability
Height
8 3/4" (22.225 cm)
Width
7 7/8" (20.0025 cm)
Depth
90 5/16" (23.65502 cm)
Shipping Weight
4.00 lbs (1.81 kgs)
Frequency Response
400 - 14,000 Hz
Impedance
8Ω
Dispersion
70°
Power Rating
15 Watts
Sensitivity
106dB
UL Listed/Standard
1480
Operating Range
-40 to 70C
Data Sheet
Installation Sheet
