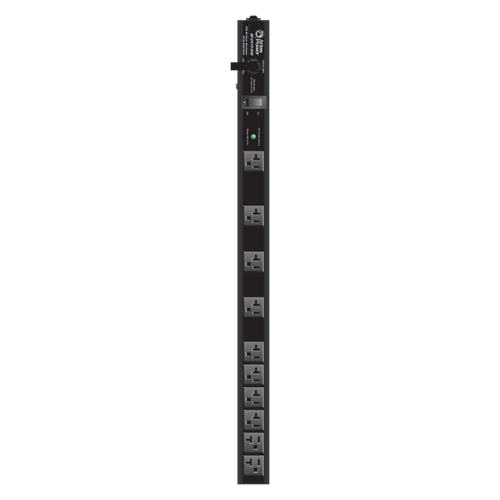

AP-2410-20S
24", 10 Outlet Vertical Power Strip
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-2410-20S is 24" rack mountable and features 20A, 2500W power capability.
Tech Data
Specifications
10 Available 20A outlets
Slimline designs, 1.62"W x 1.25"D
Two AC outlet orientations: "In Line" and "90 Degree to Chassis"
Lighted main power switch
Circuit breaker protection
Three-way surge suppression MOV protection: H-N, H-G, N-G
RFI filtering
AC protect indicator
UL, cUL listed
Also available in 72", 30 Outlet (AP-7230-20S) and 48", 20 Outlet (AP-4820-20S) Models
Outlets
NEMA 5-20R, Qty. 10
Power Cord
9' (2.74m), 12 gauge, AC Plug NEMA 5-20P
Load Rating
2500W
MAX Current Protection
20A AC Mains Breaker
Voltage Protection Rating
L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs
Energy Rating
450 Joules, 8/20µs
Power Consumption
.5W
Length
24" (609mm)
Width
1.62" (41.10mm)
Height
1.25" (31.75mm)
Weight
2.6 lbs (1.2kg)
2011 Atlas Power Brochure
