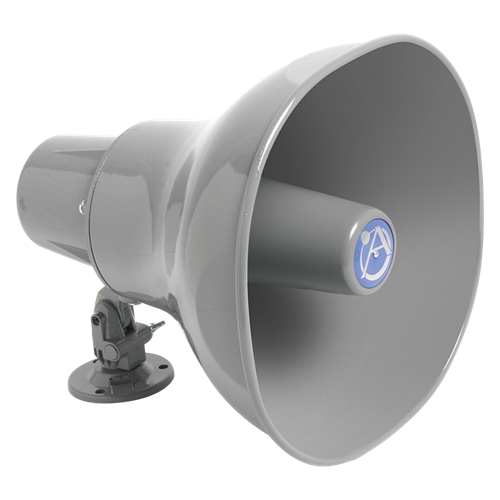

AP-30T-25 Omni-Purpose Loudspeaker 30-W., w/Xfmr. (25V)
The 8-ohm Model AP-30T-25 is a double re-entrant loudspeaker which delivers 30 watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency. The AP-30-25 operates within a nominal frequency range of 300-12,000 Hz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.
The AP-30T-25 features an integral transformer to meet a variety of distributed system needs. Model AP-30T-25 includes a 25V only line transformer. Transformers are adjustable using Atlas Sound's exclusive Vari-Tap® Connect Center which features a 7-position, watts / impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.
The trademarked square bell design signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the loudspeaker on conventional surfaces or by strap-mounting to I-beams or pillars. AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
