AP-S15
Power Conditioner and Distribution Unit
The AP-S15 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15’s circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.
Tech Data
Specifications
9 Total Outlets

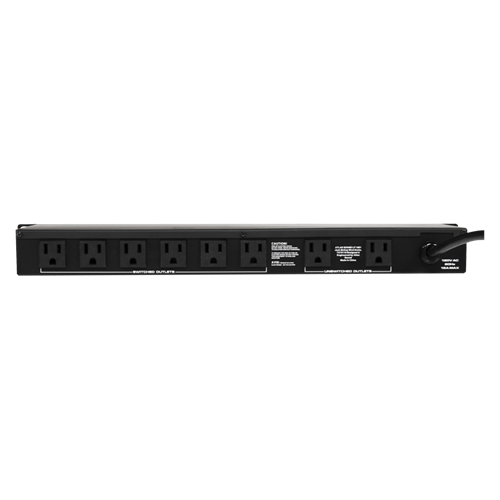

8 Rear Panel Outlets: 6 Switched and 2 Unswitched

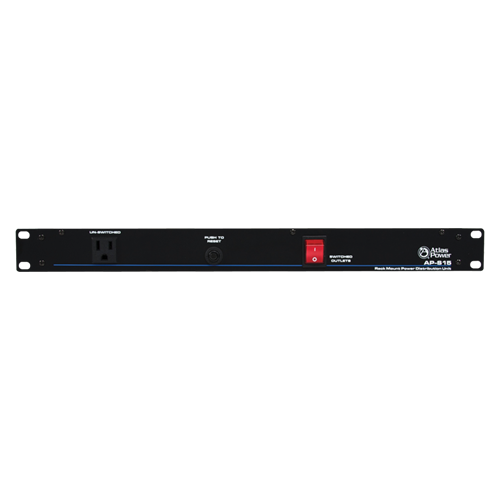

1 Front Panel Outlet, Unswitched
Radio Frequency and Electromagnetic Interference Filtering
Circuit Breaker Protection @ 15A
Spike Suppression Up to 6000V
Current Rating
15 Amps
Operating Voltage
102-132VAC
Minimum Spike Clamping Voltage
460 VRMS @ 3000A
Maximum Spike Clamping Voltage
6000V
Power Consumption
6 Watts
Height
1.75" (44.5mm)
Width
19" (482.6mm)
Depth
5" (127mm)
Weight
5 lbs. (2.27 kg)
Certifications
MET (UL 1449)
Owners Manual
2011 Atlas Power Brochure
Data Sheet
