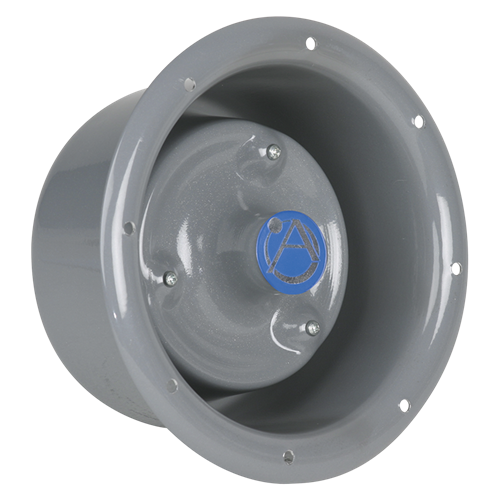

APF-15T
Flanged Omni-Purpose Loudspeaker 15-W w/Xfmr. (25/70.7/100V)
Provide 15 watts of continuous power handling with superior intelligibility and efficiency with Atlas Sound APF Series Omni-Purpose® loudspeakers.
Vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.
Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.
Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter loudspeakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5 1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles.
Loudspeakers are finished in grey baked epoxy.
Tech Data
Specifications
Choose from matching grilles, enclosures and mounting. Rings (order separately)
Double re-entrant design provides superior audibility of voice and tone signaling
High-efficiency, 15 watt compression driver with proven record of outstanding service reliability
May be flange or recess mounted
Transformer(T) equipped version for 25, 70.7, or 100V line
Vandal and environment-resistant metal construction for outdoor or indoor use
Depth
5 3/
16" (13.17752 cm)
Diameter
5 5/8" (14.2875 cm)
Shipping Weight
4.00 lbs (1.81 kgs)
Frequency Response
600-14,000Hz
Power Taps
1, 2, 3.8, 7.5, 15W @ 70.7V
Dispersion
95°
Power Rating
15 Watts
Sensitivity
104dB
UL Listed/Standard
1480
Operating Range
-40 to 70C
CAD Drawing
Data Sheet
Installation Sheet
