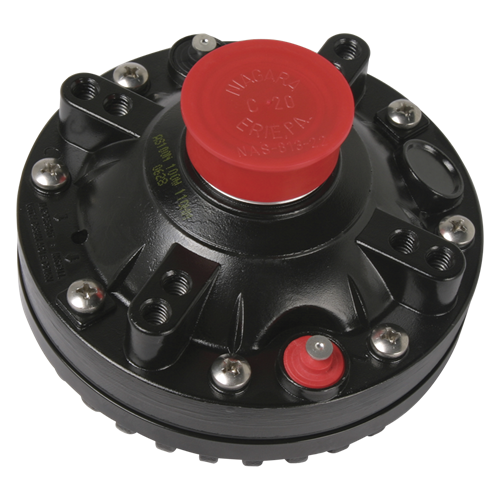

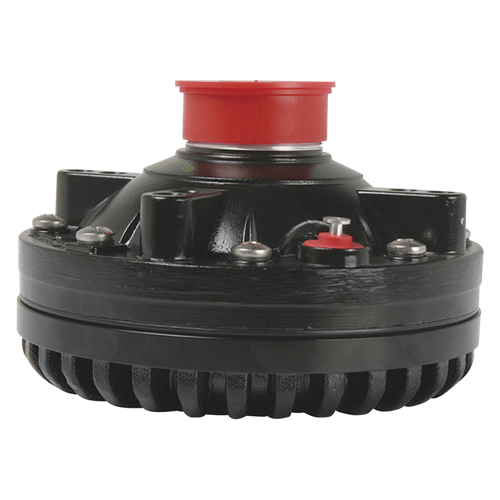

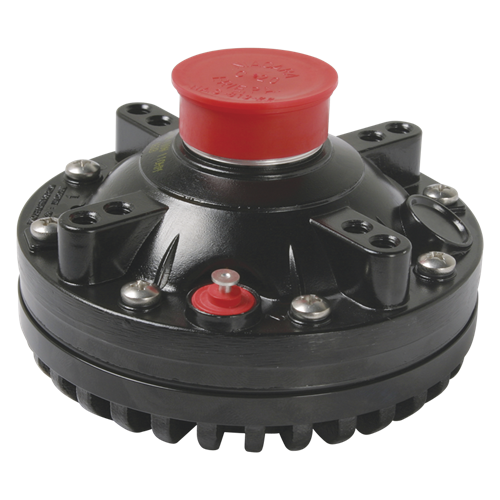

AS100N
Neodymium 100 Watt Compression Driver for Siren Loudspeakers
The AS100N 100 Watt compression driver is ideal for use in police, fire, ambulance, and utility vehicles. Driver is equipped with a self aligning sound chamber assembly containing a 2 3/4" phenolic diaphragm with a nominal impedance of 11 Ohms. The AS100N is suitable for use with matched amplifier and control equipment in systems requiring AMECA (Automotive Manufacturer Equipment Compliance Agency, Inc.) certification to General Services Administration specifications (KKK-A-1822C). The AS100N is constructed using a Neodymium-Iron-Boron magnet.
Tech Data
Specifications
100 Watt Power Handling for High Intelligibility and Sound Penetration
Accommodates Most Horns and Reflex Horns with Standard 1 3/8" - 18 Thread Pattern
Heavy-Duty Weatherproof Construction
Neodymium-Iron-Boron Magnet Structure
Specifically-Designed for Electronic Siren and Signaling applications
Height
3" (76 mm)
Diameter
4 5/8" (117 mm)
Shipping Weight
5.00 lbs (2.27 kgs)
Impedance
11Ω
Power Rating
100 watts
Plane Wave Frequency Response
100 Hz - 2.5 kHz (±5 dB)
Sound Level
117 dB (Measured on a plane wave tube @ 1mW)
Low Frequency Limit @ Full Power
500 Hz
