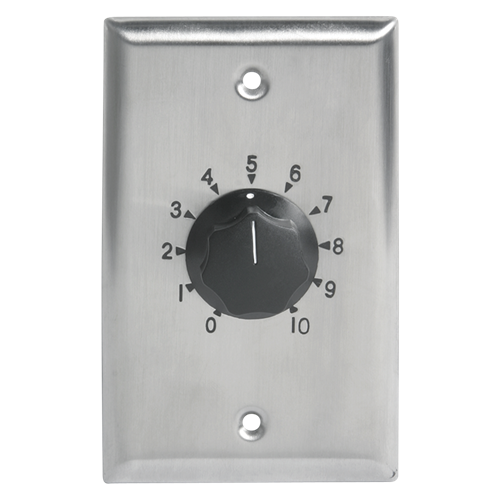

AT10-PA
Deluxe Priority, Plate Mounted 10W Attenuator w/Priority Relay, 3dB Steps
Priority paging feature by-passes the attenuator dial setting to provide full program level to the loudspeakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and attenuator are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Tech Data
Specifications
Mount into Most 1-Gang E.O. Boxes.
Priority feature compatible with Atlas AA120M amplifiers
Priority paging feature by-passes the effect of the attenuator
The SPDT relay is operated with 24 VDC at 10mA
UL Listed
Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
Height
4 1/2" (11.43 cm)
Width
2 3/4" (6.985 cm)
Depth
2 1/8" (5.3975 cm)
Shipping Weight
1.00 lb (0.45 kgs)
Plate Size
1 gang
Plate Type
Stainless Steel
Power Rating
10W
Total Attenuation
33 dB
UL Listed/Standard
813, 2043
