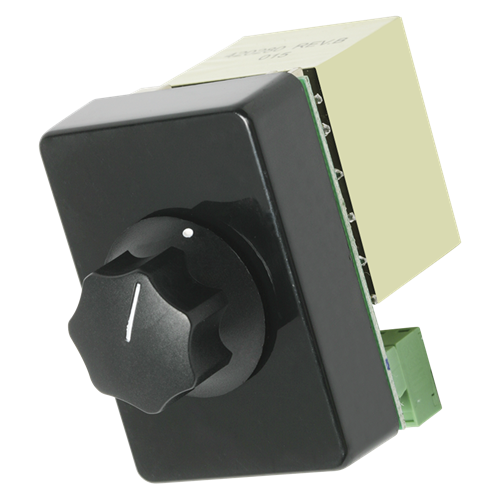

AT100-RM
Deluxe, Rack Mounted 100W Attenuator, 3dB Steps
For attenuation convenience of rack-mounted equipment in cabinets and consoles, the AT attenuators are available without mounting plate for rack panel installation. Attractive matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob. Overlay size is 29 sq. (51mm). (Dial scale overlays to retrofit existing installations are available, see hardware section Model HX23.)
Tech Data
Specifications
Attractive matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob
Mount up to six attenuators on Atlas ATPLATE-052 rack plate
UL Listed
Height
2 3/4" (6.985 cm)
Width
1 3/4" (4.445 cm)
Depth
2 1/2" (6.35 cm)
Shipping Weight
1.50 lbs (0.68 kgs)
Power Rating
100W
Total Attenuation
27dB
UL Listed/Standard
813, 2043
