ATS183GL
close window X
ATS183GL
Garden Speaker (Tall Base) 70 V
***Model has been replaced by the
GST-G
***

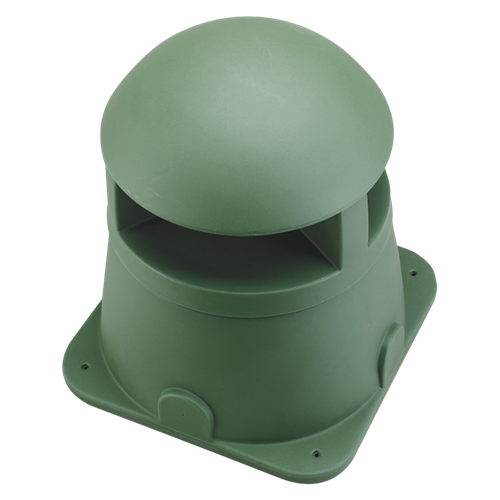

The Atlas Sound ATS183GL garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.

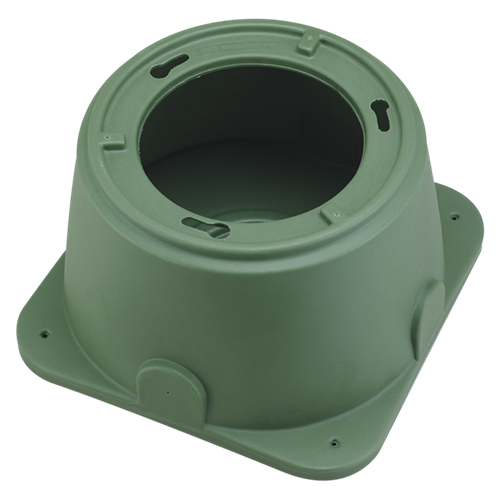

The Atlas Sound garden speakers are designed to blend into any environment. They are available with two different base models. Model includes a deep base for in-landscape burial. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer. This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The ATS183GL Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern. The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.
Tech Data
Specifications
Available in a green finish
Convenient, externally adjustable 8, 16 and 32 watt taps in 70 Volt configuration
Deep base for landscape Installations
Down firing speaker cannot collect dust or condensation and is protected by triple layer grille assembly
Durable 8" coaxial speakers with a 360-degree horizontal dispersion pattern
Revolutionary two-piece design allows for two-phase installation
Rugged construction can support up to 250 lbs.
Depth
20 7/8" (53.0225 cm)
Diameter
17 3/8" (44.1325 cm)
Shipping Weight
22.29 lbs (10.11 kgs)
Frequency Response
43Hz to 20kHz (±7dB)
Power Taps
8, 16 & 32
Speaker Type
Inground
Dispersion
360°H x 50°V
Sensitivity
83.5dB 1W/1M (Half Space Ref)
Data Sheet
CAD Drawing
CAD Drawing
Install Sheet
