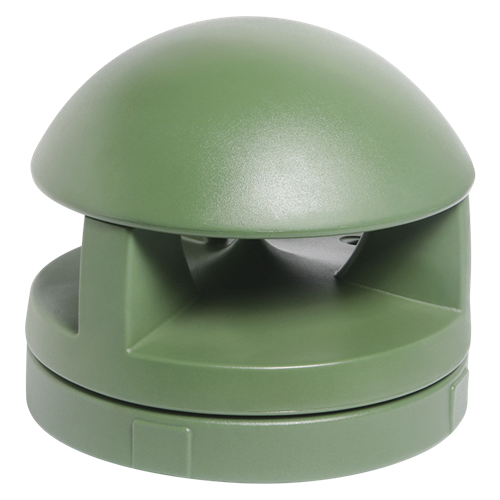

ATS183GS
Garden Speaker (Short Base) 70.7V
The Atlas Sound ATS183GS garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.
The Atlas Sound ATS183GS garden speaker is designed to blend into any environment. This model includes a short base for surface mounting. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer. This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site. The ATS183GS Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern. The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.
Tech Data
Specifications
Available in a green finish
Convenient, externally adjustable 8, 16 and 32 watt taps in 70 Volt configuration
Down firing speaker cannot collect dust or condensation and is protected by triple layer grille assembly
Durable 8" coaxial speakers with a 360-degree horizontal dispersion pattern
Revolutionary two-piece design allows for two-phase installation
Rugged construction can support up to 250 lbs.
Shallow base for surface or shallow bed mounting
Depth
17 5/8" (44.7675 cm)
Diameter
15 1/8" (38.4175 cm)
Shipping Weight
19.20 lbs (8.71 kgs)
Frequency Response
43Hz to 20kHz (±7dB)
Power Taps
8, 16 & 32
Speaker Type
Deck-mount
Dispersion
360°H x 50°V
Sensitivity
83.5dB 1W/1M (Half Space Ref)
