B161-4
4" Loudspeaker Combo Package FC104T72/161-4

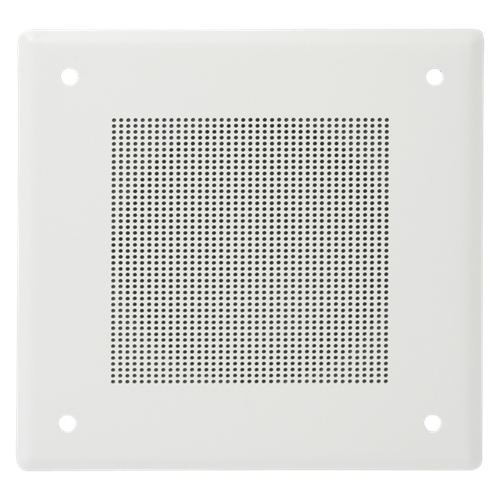

Attractive B161-4 loudspeaker assembly combines the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. Model incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems. Loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V transformer and a square grille with screw mount. B161-4 packag is shipped assembled and ready for installation.
Tech Data
Specifications
Factory-assembled loudspeaker packages save time and money
High compliance 4" loudspeaker for full-range audio reproduction in background music and paging systems
Depth
2 1/4" (5.715 cm)
Diameter
4" (10.16 cm)
Shipping Weight
3.33 lbs (1.51 kgs)
Frequency Response
100Hz - 10kHz (+/- 1.5dB)
Power Taps
70.7V/25V
Speaker Type
High Compliance
Dispersion
135°/ -6dB, 2kHz
Sensitivity
94dB (at 1W / 1M)
Data Sheet
