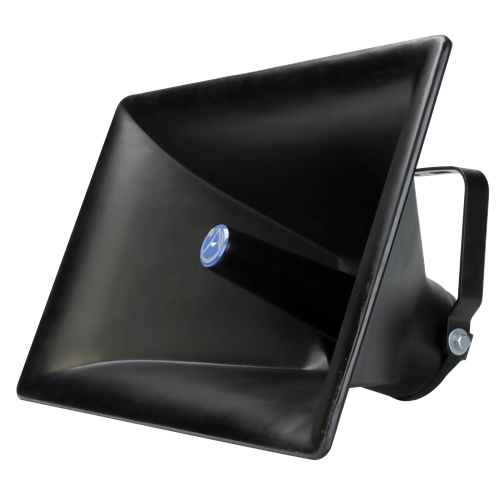

CD94
90° X 40° Constant Directivity Re-Entrant Paging Horn
The Industry's Only Constant Directivity Re-Entrant Horn
New CD Series horns from Atlas Sound provide greatly improved uniform sound coverage compared to conical designs.
With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.
Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended Atlas Sound Drivers: PD30 Series, PD-5 Series, PD60 Series.
Tech Data
Specifications
High Efficiency Constant Directivity, Re-Entrant Horn Design
Popular Coverage Patterns to Accommodate Most Applications
Vertical Beamwidth Control Down to 1000hz
Heavy-Duty Positive Locking Steel Mounting Bracket for Secure
Positioning
Environment - Resistant Construction for Indoor / Outdoor
Applications
Equipped With Standard 1?" - 18 Female Threads for Use with All PD Series Drivers
Height
18 1/4" (463mm)
Width
28¼" (718mm)
Length
15" (380mm)
Dispersion
H, 90°, ±10°, 900Hz-6kHz V, 40°, ±10°, 1000Hz-10kHz
Low Frequency Cut Off
300Hz
SPL (1W/1M) w/ PD60 Driver
110dB
Data Sheet
