CS95-8

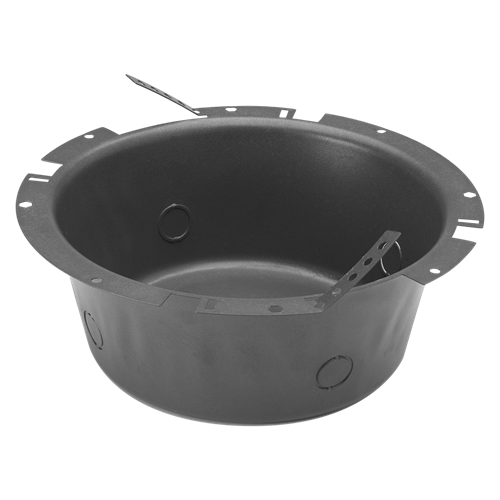

8" Recessed Round Stacking Enclosure
Ideal for contractors with limited storage facilities, this conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs.
Furnished with four combination conduit knockouts 1/2" – 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.
The CS95-8 enclosure is a perfect for use with Atlas Sound model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W loudspeaker/ transformer/baffle packages.
Note: Enclosure is not designed to mount other loudspeaker packages with pre-mounted high performance transformers (HT-167, HT-327).
Tech Data
Specifications
Cost effective enclosure system for general use
Perfect for SD72W or DLS4
Stackable for easy storage
Depth
4 1/4" (10.795 cm)
Diameter
11 3/4" (29.845 cm)
Shipping Weight
2.33 lbs (1.06 kgs)
Mounts Baffle
51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), G22-8, M222(W), P900, VP60-R
UL Listed/Standard
1480, 2043
CAD Drawing
Data Sheet
Baffle/Enclosure Mounting Guide
