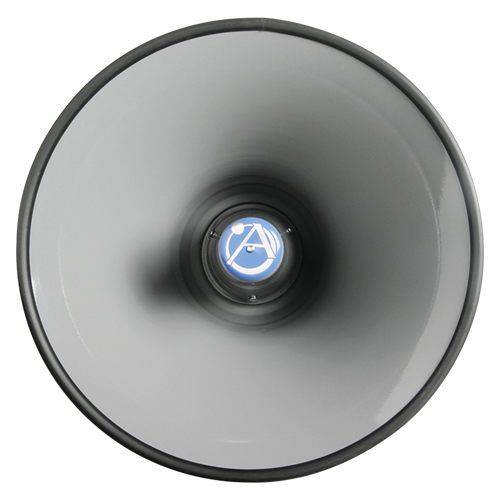

DR-72
65° Uniform Coverage Horn
Atlas Sound DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise.
The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.
Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling.
The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.
The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.
Tech Data
Specifications
Accepts All Standard High Efficiency Compression Drivers with 13/8" - 18 Male Threads
Exponentially-Flared for Uniform Sound Distribution
Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
Weatherproof, All-Metal Construction for Year Round Use
Depth
28" (71.12 cm)
Diameter
31" (78.74 cm)
Shipping Weight
25.00 lbs (11.34 kgs)
Dispersion
65°
Data Sheet
