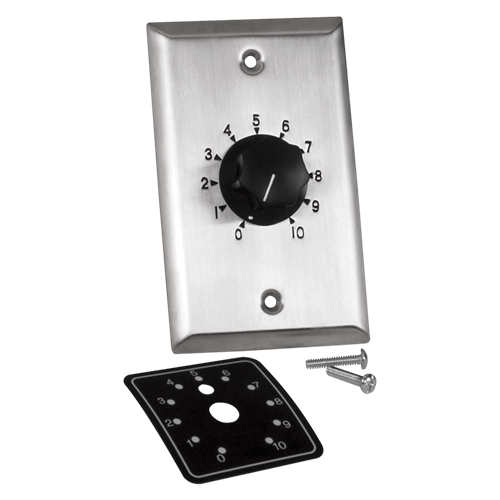

E408-100
Precision, Plate Mounted 100W Attenuator, 1.5dB Steps
Specially designed for attenuation in masking and sound reinforcement systems where fine tuning of level control is required. Employs a ten-position, non-shorting rotary switch without stop. Attenuation rate is 1.5dB per step. (All other specifications are the same as the AT Series including the UL listing.)
Tech Data
Specifications
1.5 dB steps for Sound Masking and other precision applications
100 watt power handling
Rack or Plate mounting
Height
4 1/2" (11.43 cm)
Width
2 3/4" (6.985 cm)
Depth
2 5/8" (6.6675 cm)
Shipping Weight
1.00 lb (0.45 kgs)
Plate Size
1 gang
Plate Type
Stainless Steel
Power Rating
100W
Total Attenuation
15dB
UL Listed/Standard
813, 2043
Data Sheet
