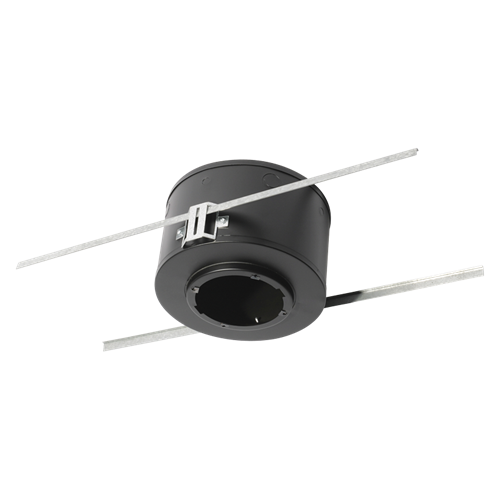

EZ96-4X
EZ Mount Flanged Enclosure for 4" Loudspeaker Extra Deep
The EZ Mount Support System (Patent # 4,484,658) is available on Atlas Sound's most popular 4" round enclosures. It also accommodates the same wide selection of baffles to meet your specifications and to provide inventory flexibility. The EZ Mount Enclosure/Rail System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.
Tech Data
Specifications
Accommodates a Wide Selection of Atlas Sound Baffles
Available-Factory Mounted-on Popular Atlas Sound 4" Round Enclosures
Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
Offered for Suspended Ceiling Applications
Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings
Depth
6" (15.24 cm)
Diameter
5 1/8" (13.0175 cm)
Shipping Weight
4.00 lbs (1.81 kgs)
Mounts Baffle
51-4, 60-4
UL Listed/Standard
1480
Data Sheet
