EZE410

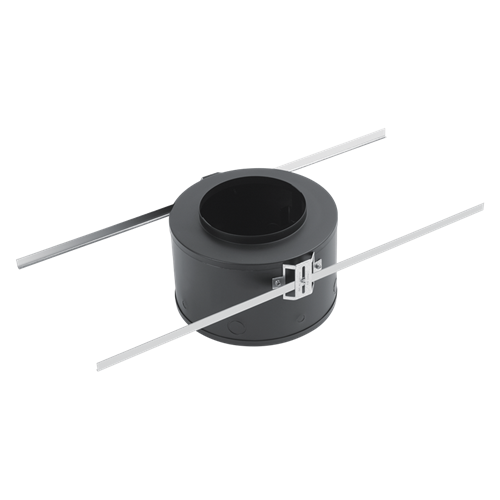

EZ Torsion Mount Enclosure for 4" Loudspeaker
The EZ Mount Support System (Patent # 4,484,658) is available on Atlas Sound's most popular 4" round enclosures including EZE410. Units accommodate the a wide selection of baffles
The EZ Mount Enclosure/Rail System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished).
No tile bridge or time-consuming screw mounting is necessary.
Tech Data
Specifications
Accommodates a Wide Selection of Atlas Sound Baffles
Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings
Depth
6" (15.24 cm)
Diameter
6 3/8" (16.1925 cm)
Shipping Weight
4.50 lbs (2.04 kgs)
Mounts Baffle
T51-4, T60-4, T710-4, T720-4(BT), T740-4,T730-4B(4G)
CAD Drawing
Data Sheet
