EZHD72W

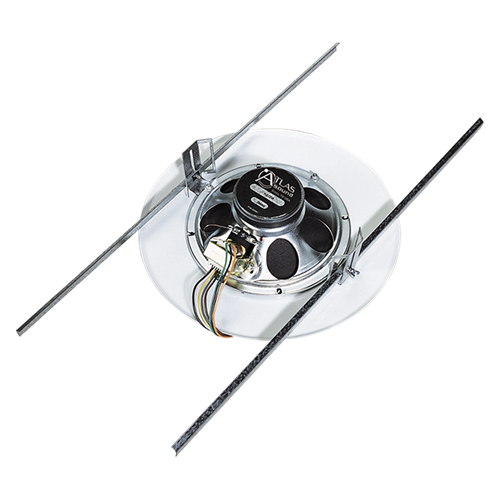

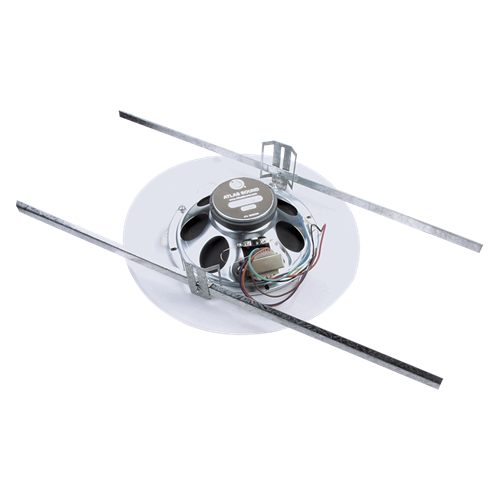

Pre-assembled baffle, 10 oz Loudspeaker & transformer 25/70.7V 4W xfmr/51-8/EZ

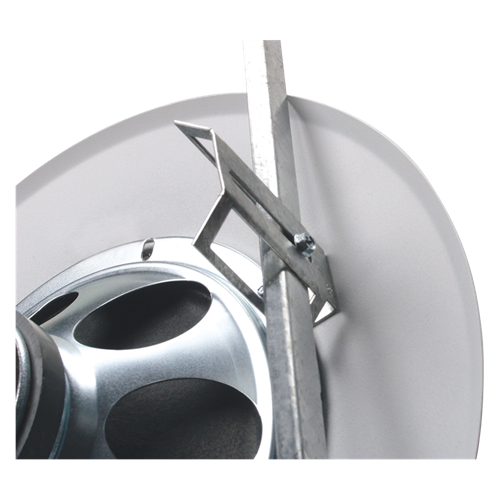

The EZ Mount Support System transfers the composite weight of the loudspeaker, baffle, and enclosure to the ceiling’s support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.
The support rails are heavy-gauge CRS and finished in a galvanized coating.
Tech Data
Specifications
62-8 Style grill with white finish
Equipped with 25/70.7V transformer
Quick assembly in standard 2 x 4 suspended Tile ceilings
Depth
2 7/8" (7.3025 cm)
Diameter
8" (20.32 cm)
Shipping Weight
5.17 lbs (2.35 kgs)
Frequency Response
100 Hz - 10 kHz, ± 1.5dB
Power Taps
.25, .5, 1, 2, 5
Speaker Type
Treated Paper
Dispersion
105°
Sensitivity
97dB Peak, 94dB Average
