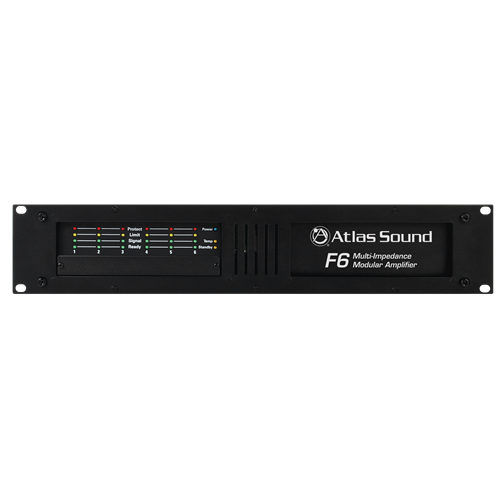

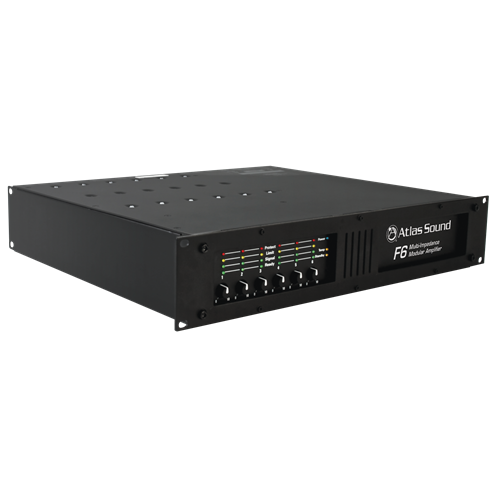

F6-MF Multi-Impedance Modular Amplifier
The Atlas Sound F6 Amplifier Mainframe System is the industry's most versatile multi-channel amplifier. An innovative, modular input and 6-bay output section allows the F6 to be easily configured for most 4Ω/8Ω or 70.7V zone amplification applications.

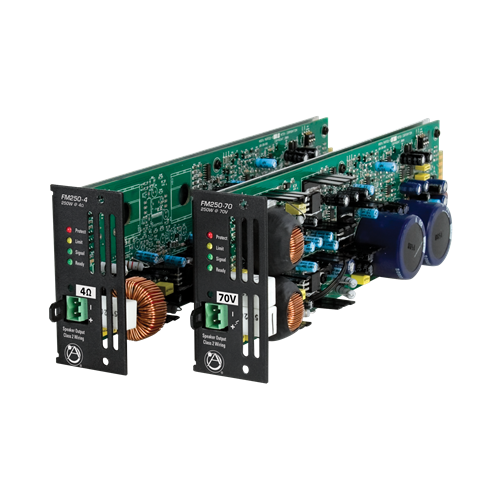

Each module has 250W of output power and each features a defeatable limiter and high pass filter. The F6 FM250 series power modules are designed to be 90% efficient allowing the amplifier to run cooler and consume less energy than conventional commercial amplifiers.

Analog mixer and DSP input cards will also be available. Within the F6 frame, a high-current robust global power supply is routed to each output module through quad-ganged connector contacts minimizing the impedance path and allowing for maximum current delivery.

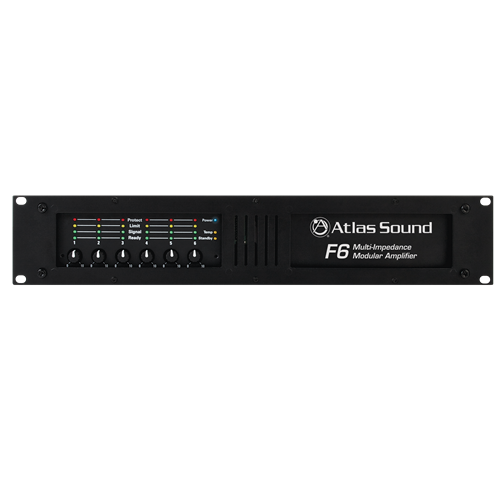

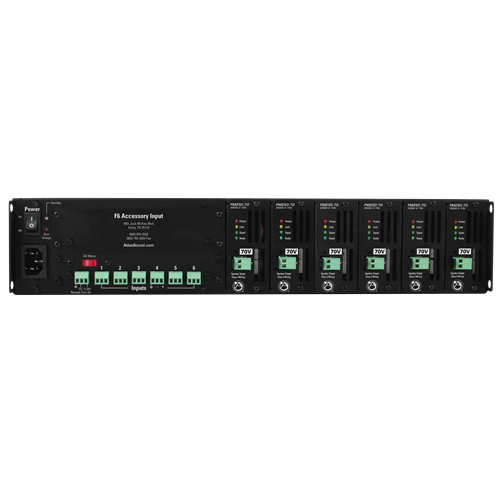

Both front and back panels feature intuitive metering and security covers are included on front input attenuators to prevent tampering.
Tech Data Specifications
  • Modular Input and Output Section
  • 70.7V or 4Ω/8Ω, 250W Amplifier Modules
  • 110V-120V/230V-240V Power Supply Allows For Global Operation
  • Intuitive Metering on Front and Back Panels
  • Optional Analog Mixer and DSP Input Cards
  • Security Cover Included for Front Panel Input Attenuation
  • Fan Assisted Cooling with Rear Intake and Front Exhaust
  • Light Weight Power Rail Direct Coupling (PRDC) Technology
  • Ultra-Efficient Class D Amplification Topology
  • Energy Save Mode, Remote Activation
