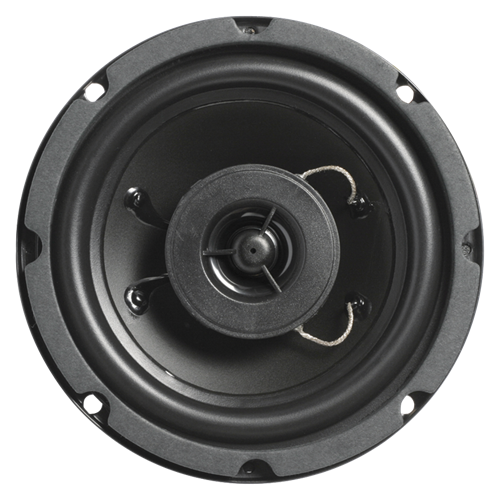

FA134T87
4" Strategy Series Coaxial Loudspeakers (UL Listed) 70.7V-8W xfmr
The FA134T87 is a UL listed coaxial 4" (127mm) loudspeaker that handles 25-watts with smooth extended frequency response.
The unit's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve total coverage in distributed systems with low ceilings.
Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately).
Loudspeakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.
Tech Data
Specifications
25-Watt, UL Listed, 4" Coaxial Loudspeaker
Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
Patented System Design Provides Easy Installation
Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
Depth
4" (10.16 cm)
Diameter
5" (12.7 cm)
Shipping Weight
1.71 lbs (0.77 kgs)
Frequency Response
110 Hz- 20 kHz +5dB
Power Taps
1, 2, 4, 8
Speaker Type
Coaxial
Dispersion
130°
Sensitivity
88dB Average, 92dB Peak
UL Listed/Standard
1480
