FA136T87FRK
Fire Rated 6" Strategy Series Coaxial Loudspeakers (UL Listed) 70.7V-8W xfmr

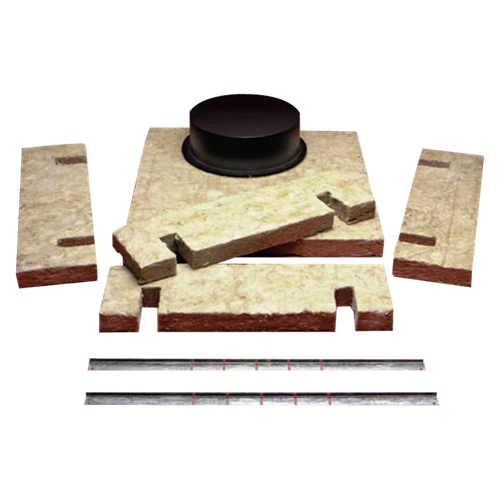

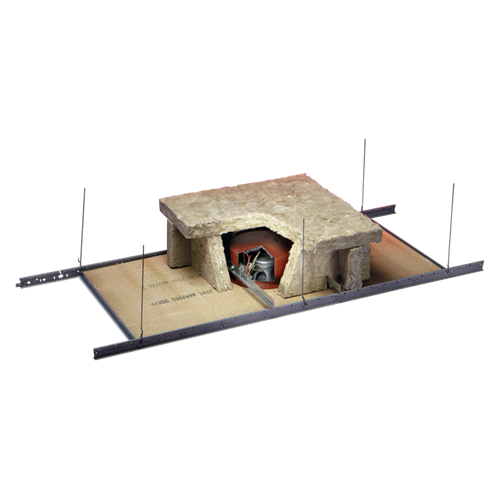

FA136T87FRK is UL classified for fire-resistance in the United States and Canada. The FA136T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA136T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA136T87FRK are FR versions of the industry standard Atlas Sound Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 loudspeakers.
Tech Data
Specifications
Height
10 3/4" (27.305 cm)
Width
24" (60.96 cm)
Depth
24" (60.96 cm)
Shipping Weight
0.00 lbs (0.00 kgs)
Included Baffle
FA720-6FR
Included Speaker
FA97-6FR
Included Enclosure
FA136T87FR
UL Listed/Standard
ANSI / UL 263 (ASTM E119, NFPA 251)
Data Sheet
