FA138T327

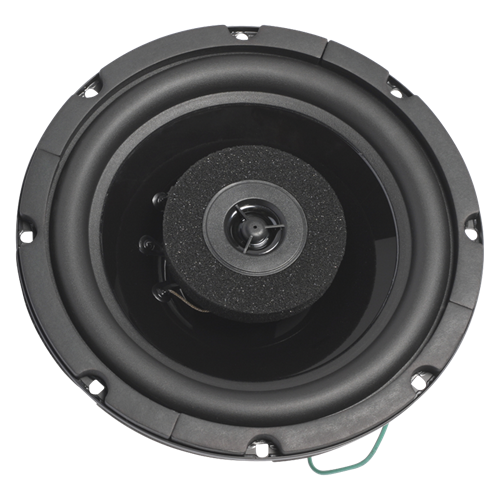

8" Strategy Series Coaxial Loudspeakers (UL Listed) 70.7V-32W xfmr
Model FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 85 Hz - 20 kHz. Model FA138 contains a Kevlar® fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 11.2" vented Kapton voice coil, a 21 oz. magnet and a 1.2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.
Tech Data
Specifications
25-Watt, 8" Loudspeaker System Delivers Efficient Frequency Response
Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
Patented System Design Provides Easy Installation
Performance Sensitivity Offers Enhanced Audio Clarity
System Components Include: Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles
Depth
5 1/2" (13.97 cm)
Diameter
8 1/4" (20.955 cm)
Shipping Weight
8.00 lbs (3.63 kgs)
Frequency Response
75 Hz- 20 kHz (+5dB)
Power Taps
70.7V
Speaker Type
Coaxial
Dispersion
110°
Sensitivity
89.5dB Average, 93dB Peak
UL Listed/Standard
1480
CAD Drawing
Data Sheet
