FA138T87FRK Fire Rated 8" Strategy Series Coaxial Loudspeakers (UL Listed) 70.7V-8W xfmr

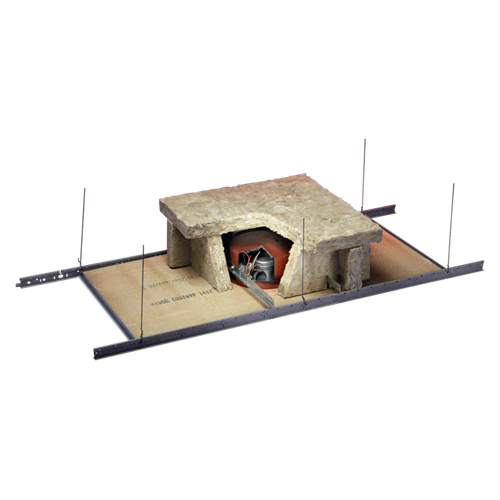

FA138T87FRK is UL classified for fire-resistance in the United States and Canada. The FA138T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA138T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA136T87FRK are FR versions of the industry standard Atlas Sound Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 loudspeakers.
Tech Data Specifications
  • 8 watt 70 volt transformer
  • 8" coaxial driver with tuned enclosure
  • ASTM E119 Standard, NFPA 251
  • Designed to work in 32 different 1,2, & 3 hour rated ceiling designs as listed in the 1999 UL Fire Resistance Directory

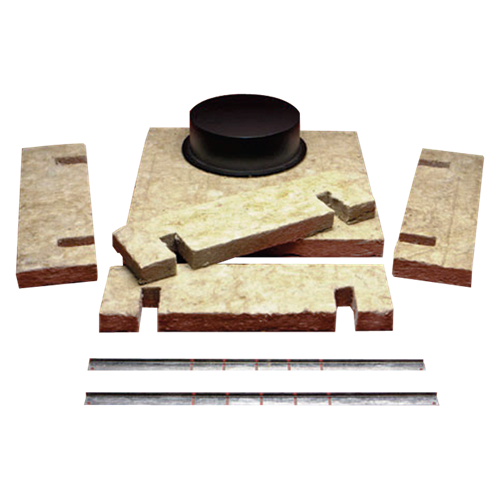

  • Enclosure-fiber kit includes pre-cut fiber enclosures, metal enclosure, rail set, and hardware
  • FR Series assemblies include enclosure kit, UL Listed speaker/transformer assembly, and UL listed baffle
  • Quick installation & Low Installed cost
  • UL 263 Listed for fire rated ceilings
  • Uses industry standard Atlas Strategy Series components with proven performance
