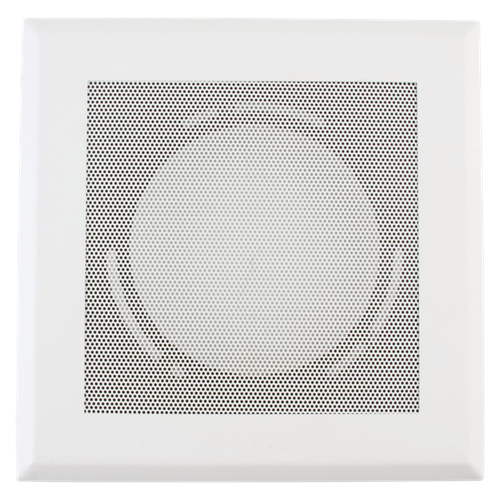

FA170-8
Square Grill for 8" Strategy Speakers
Acoustically matched and treated backboxes allow Strategy Series loudspeakers to perform with optimum resonance-free operation. Standard units include three, easy-toadjust clamps that rotate and secure with a screwdriver into ceilings up to 11/4" thick. They may also be installed by conventional screw mounting if desired. Models are offered in 4", 6" and 8" sizes in volume and economy versions. Volume Model Series FA97 and Economy Model Series FA95 are 22- gauge CRS, undercoated and equipped with four threaded loudspeaker inserts and three grille-stud receptacles. Both are finished in black epoxy. FA97 Series is lined with 5/16" thick high-density acoustic batting for superior full-range music performance.
Tech Data
Specifications
Designed to work only with Strategy I enclosures and plaster rings
Equipped with three weld studs that allow tool-free push-in installation

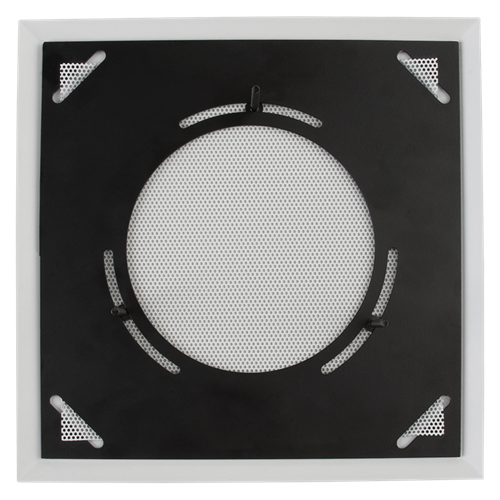

Integrally designed sub-plate with slotted cut outs allows the grill to be rotated in line with the ceiling regardless of how the enclosure is mounted
No exposed hardware
Smooth baked on, two-part, hybrid epoxy finish
Square grill option for Strategy I Series enclosures
UL1480 for General Signaling Listed file UEAY.S1824
Height
11 1/4" (28.575 cm)
Width
11 1/4" (28.575 cm)
Depth
5/16" (0.79502 cm)
Shipping Weight
12.00 lbs (5.44 kgs)
UL Listed/Standard
1480
Data Sheet
