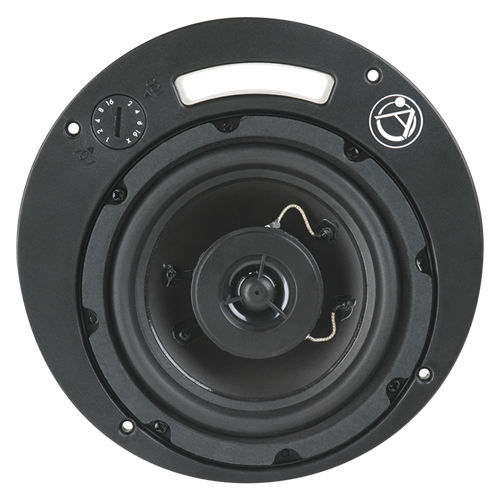

FA42T-6MB Strategy II 4" 16W @ 70.7V/100V "Motor Board" Assembly
- Fits Original Strategy Series 6" Enclosures

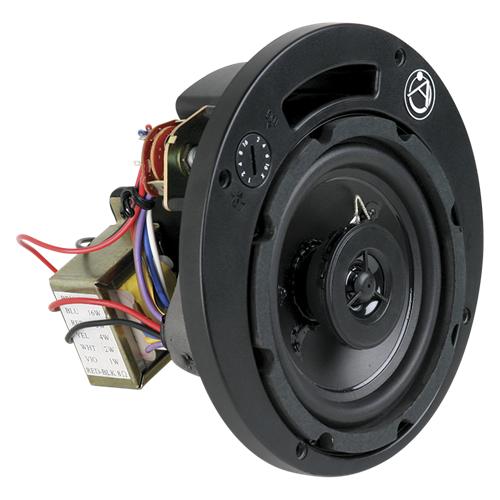

Model FA42T-6MB is the entire 4" speaker/ transformer/ selector switch/ front plate assembly found in the FAP42T assembly. The footprint of the FA42T-6MB is identical to a standard FA series 6" speaker component. This footprint allows the motor board to fit into all original Strategy Series 6" enclosures in the exact same manner as a regular 6" FA speaker (FA136Txx).


Atlas Sound



Tech Data Specifications
  • 4" Speaker installs into 6" Strategy enclosure
  • Designed for division of labor installations when enclosures need to be installed before speakers are installed
  • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
  • Front mounted tap selector switch for easy system tuning adjustments
  • Motorboard assembly has same footprint and bolt-hole pattern as 6" speaker
  • Tuned port maximizes low frequency response from FA97-6 & FA95-6 enclosure
  • UL1480 for General Signaling Listed file UEAY.S1824
