FA62T-8MB

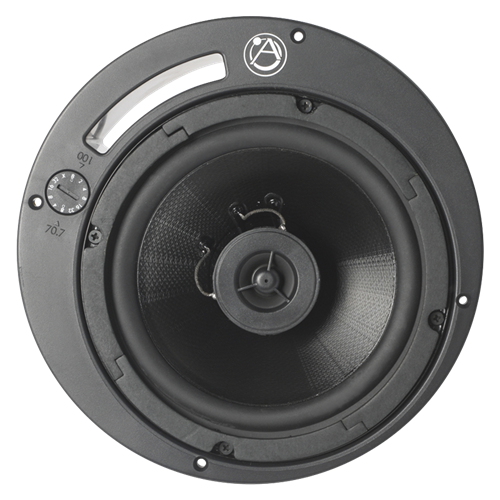

Strategy II 6" 50W @ 70.7V/100V "Motor Board" Assembly - Fits Original Strategy Series 8" Enclosures
Model FA62T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP62T assembly. The footprint of the FA62T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).
Tech Data
Specifications
6" Speaker installs into 8" Strategy enclosure
Designed for division of labor installations when enclosures need to be installed before speakers
Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
Tuned port maximizes low frequency response from FA97-8 & FA95-8 enclosure
UL1480 for General Signaling Listed file UEAY.S1824
Depth
5 1/2" (13.97 cm)
Diameter
8 1/2" (21.59 cm)
Shipping Weight
6.00 lbs (2.72 kgs)
Frequency Response
63Hz-20kHz
Power Taps
2, 4, 8, 16, 32, 8 Ohm direct
Speaker Type
Coaxial
Dispersion
110°
Sensitivity
88dB Average
UL Listed/Standard
1480
Installation Sheet
CAD Drawing
Data Sheet
