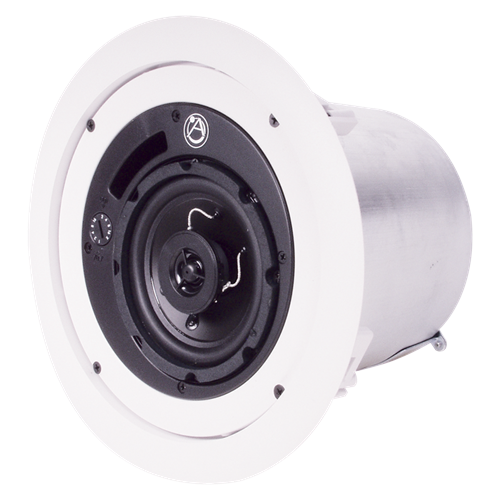

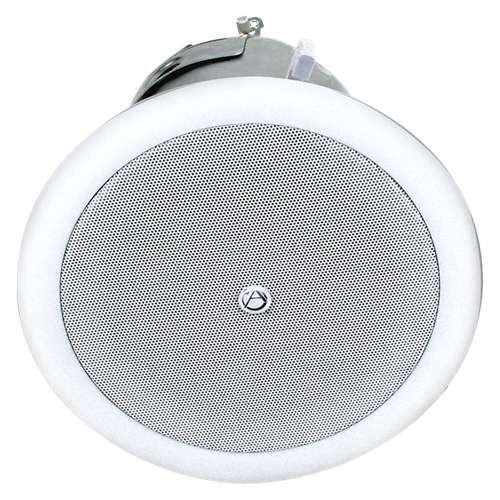

FAP42T-UL2043
4" 2-Way Speaker System w/ 16-Watt 70.7V/100V Internal Transformer - White
The new FAP42T-UL2043 from Atlas Sound meets requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial loudspeaker performance with wide dispersion and easy
installation.
A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.
The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.
The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
Tech Data
Specifications
4 Pole detachable "phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (Included)
Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg"mounting system (Included)
Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
Extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
Perfect companion with the FAPSUB subwoofer system when sub bass is required
Press-fit grille blends perfectly into contemporary architecture
Depth
8 7/8" (22.5425 cm)
Diameter
10 1/2" (26.67 cm)
Shipping Weight
12.00 lbs (5.44 kgs)
Frequency Response
75Hz - 20kHz
Power Taps
1W, 2W, 4W, 8W, 16W & 8Ω
Speaker Type
Coaxial
Dispersion
130°
Sensitivity
88dB Average
UL Listed/Standard
1480 / 2043
Data Sheet
CAD Drawing
Brochure
