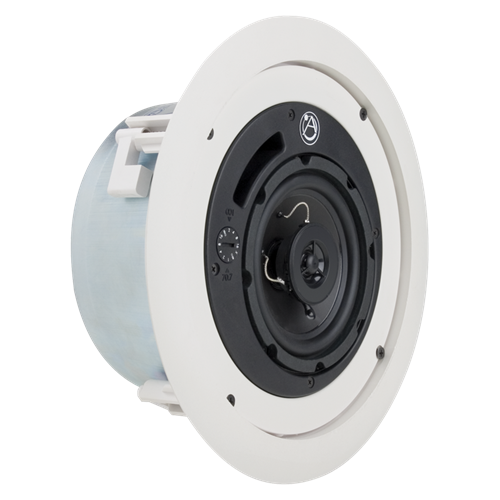

FAP42TC-UL2043
4" Coaxial Speaker System with 70.7V/100V-16W Transformer and 8Ω Bypass - Shallow Mounting Depth
The new FAP42TC-UL2043 from Atlas Sound meets the requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. With an overall depth of 4" (102mm) the FAP42TC-UL2043 is the perfect choice when high fidelity audio and wide, even coverage is required but space above the plenum is limited. For wall mount applications (tanning salons or surround sound) the short 4" depth will even work in most stud wall installations.
A simplified input section features a 4-pole Phoenix style connector for easy daisy chaining between speakers. A simple cover including combination 1/2" (13mm) / 3/4" (19mm) knock-outs is provided for installation ease.
The popular Atlas Sound "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and existing construction drywall. For new construction drywall applications the optional FAP42-TR may be used.

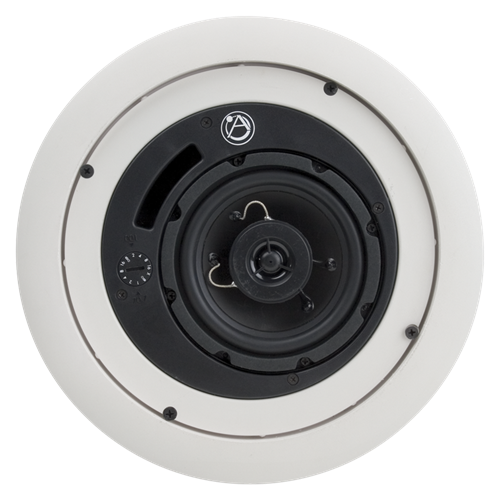

All other popular features of the FAP42T are included on the new FAP42TC-UL2043 including the front mounted tap selector switch (with included transformer bypass for 8 Ohm applications), attractive press-fit grills, high performance 4" polypropylene cone driver with 3/4" (19mm) PEI tweeter and precision crossover components for smooth, even coverage.
Click here for a list of our compatible amplifiers
.
Tech Data
Specifications

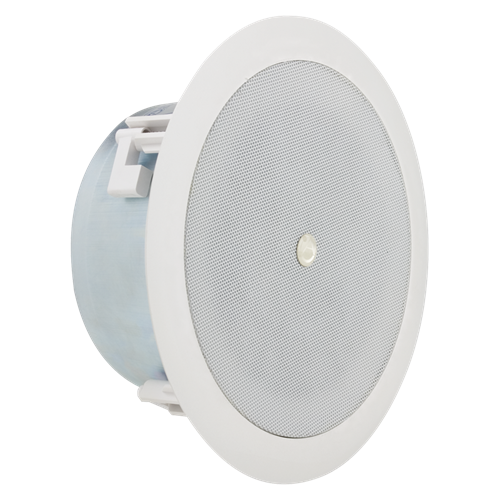

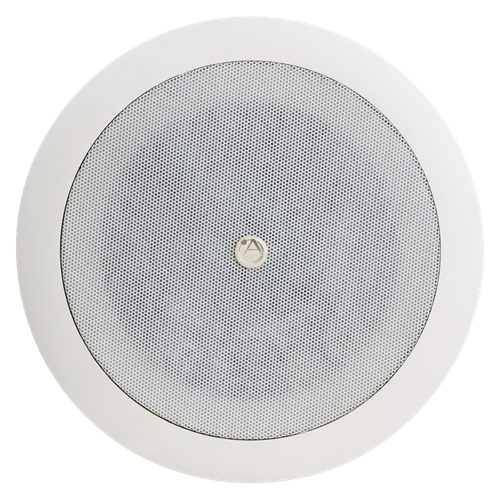

"Press fit" grilles blend better into contemporary architecture
Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (Included)
Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
Low depth (4") speaker system for limited space applications
UL1480 / UL2043
Speaker Type
Coaxial
Power Taps
1, 2, 4, 8, 16 Watts & 8Ω
Frequency Response
75Hz - 20kHz
Dispersion
130°
Sensitivity
88dB Average
Depth
4 1/4" (10.7696 cm)
Diameter
10 1/2" (26.67 cm)
Shipping Weight
13.00 lbs (5.90 kgs)
Certified to Safety Listing
UL 1480 & UL 2043
Installation Sheet
CAD Drawing
Baffle/Enclosure Mounting Guide
Data Sheet
