FAPSUB
8" Tuned & Ported 60W @ 70.7V/100V Ceiling Subwoofer System
The FAPSUB adds impressive low frequency response to any full range distributed system

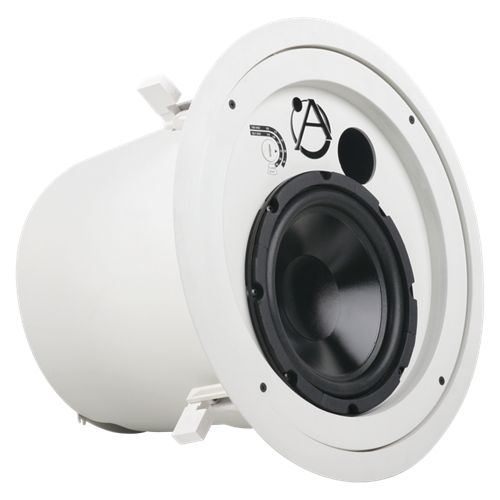

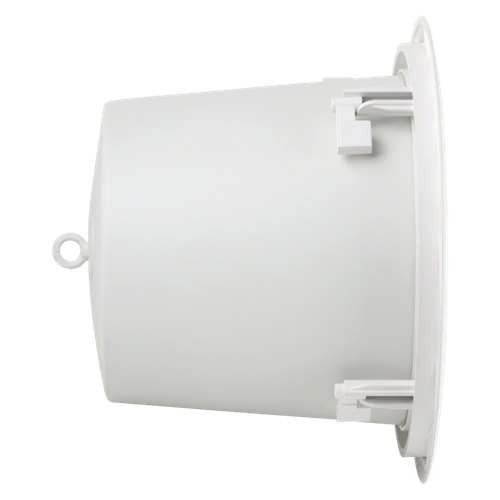

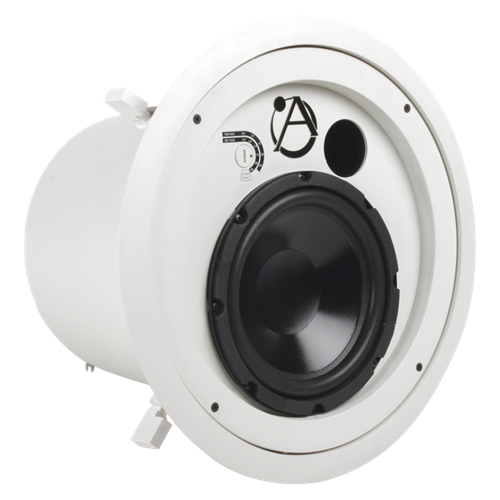

The FAPSUB consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass responsedown to 45Hz (±10dB).
A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling.This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.
Tech Data
Specifications

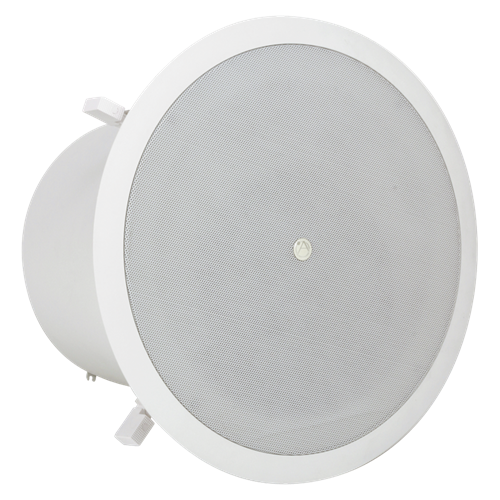

Attractive grille and bezel matches aesthetics of other Atlas Sound FAP Series

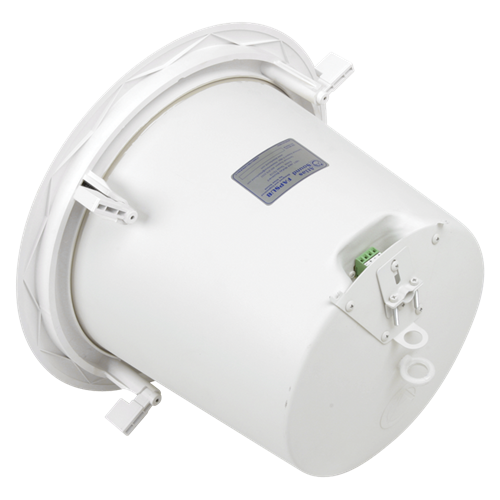

Detachable, Phoenix style, locking, four-pole connector provides for easy daisy chain wiring
Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included)

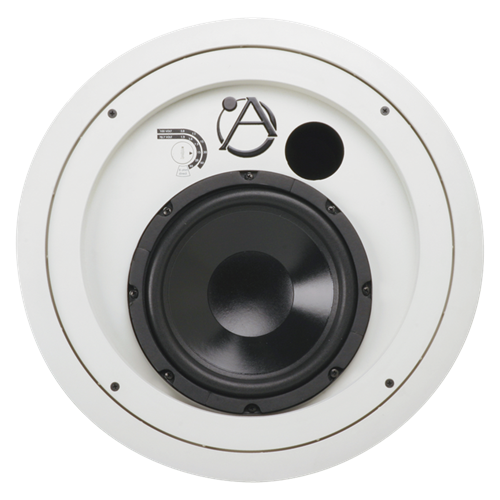

Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
High efficiency, passive crossover network eliminates the need for dedicated amplifier and/or active crossover
Low crossover point greatly reduces localization (ability of listener to identify the subwoofer location)
Uniquely designed, "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit
Depth
12 3/4" (32.385 cm)
Diameter
15 3/4" (40.005 cm)
Shipping Weight
21.50 lbs (9.75 kgs)
Frequency Response
45Hz to 120Hz (±10dB)
Power Taps
1.9, 3.8, 7.5, 15, 30 and 60W, 8 Ohm
Speaker Type
In Ceiling Sub
Dispersion
Omni
Sensitivity
89dB Average
UL Listed/Standard
1480
